Description
Brand - IKO
Item Number - CRBC 50070 IKO
Also Known As - CRBC50070
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 500
Bore Diameter (d) mm - 500
Outer Diameter (D) mm - 680
Width (B) mm - 70
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 530
Mounting Dimension (Da) mm - 633
Basic Dynamic Load Rating (C) N - 536000
Basic Static Load Rating (C0) N - 1020000
Weight (kg) - 86.1
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 50070

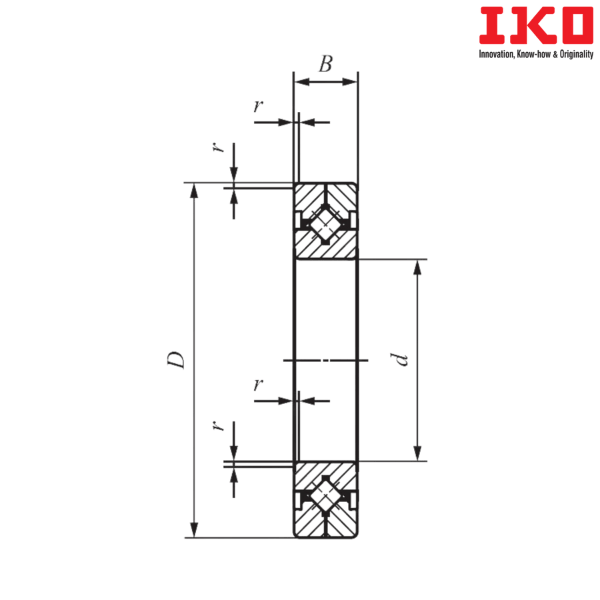

** Images are for representation purposes only
