Description
Brand - IKO
Item Number - CRBC 50050 IKO
Also Known As - CRBC50050
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 500
Bore Diameter (d) mm - 500
Outer Diameter (D) mm - 625
Width (B) mm - 50
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 531
Mounting Dimension (Da) mm - 592
Basic Dynamic Load Rating (C) N - 247000
Basic Static Load Rating (C0) N - 561000
Weight (kg) - 41.7
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 50050

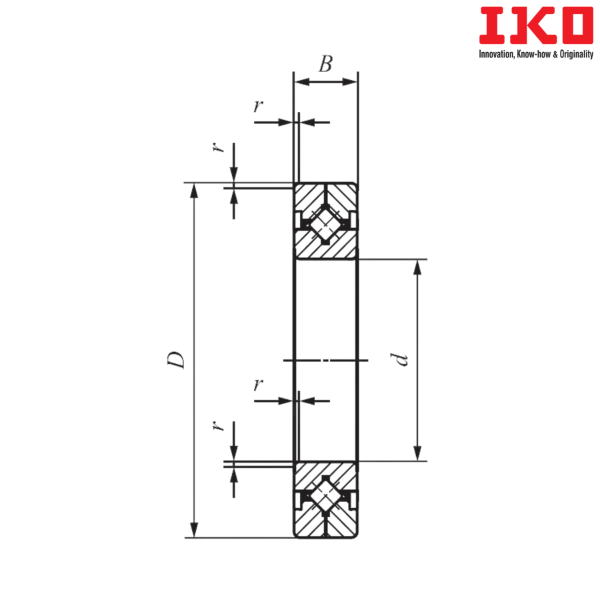

** Images are for representation purposes only
