Description
Brand - IKO
Item Number - CRBC 50040 IKO
Also Known As - CRBC50040
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 500
Bore Diameter (d) mm - 500
Outer Diameter (D) mm - 600
Width (B) mm - 40
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 517
Mounting Dimension (Da) mm - 573
Basic Dynamic Load Rating (C) N - 212000
Basic Static Load Rating (C0) N - 497000
Weight (kg) - 26.0
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 50040

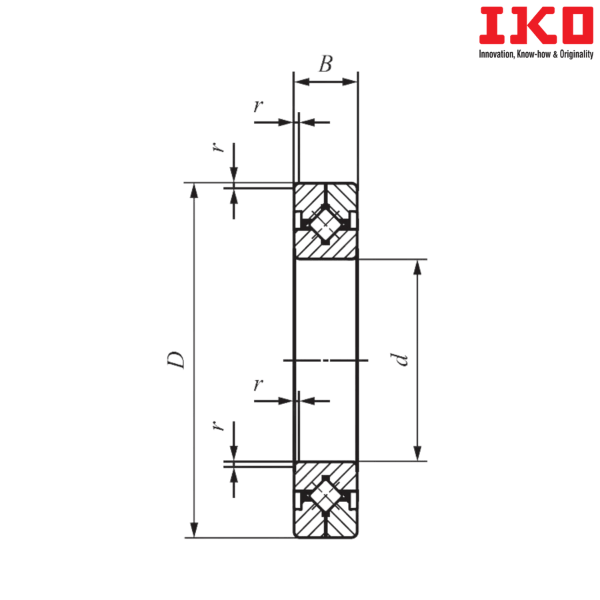

** Images are for representation purposes only
