Description
Brand - IKO
Item Number - CRBC 4010 IKO
Also Known As - CRBC4010
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 40
Bore Diameter (d) mm - 40
Outer Diameter (D) mm - 65
Width (B) mm - 10
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.3
Mounting Dimension (da) mm - 44
Mounting Dimension (Da) mm - 54
Basic Dynamic Load Rating (C) N - 4280
Basic Static Load Rating (C0) N - 5140
Weight (kg) - 0.15
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 4010 UU
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 4010
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 4010 UU

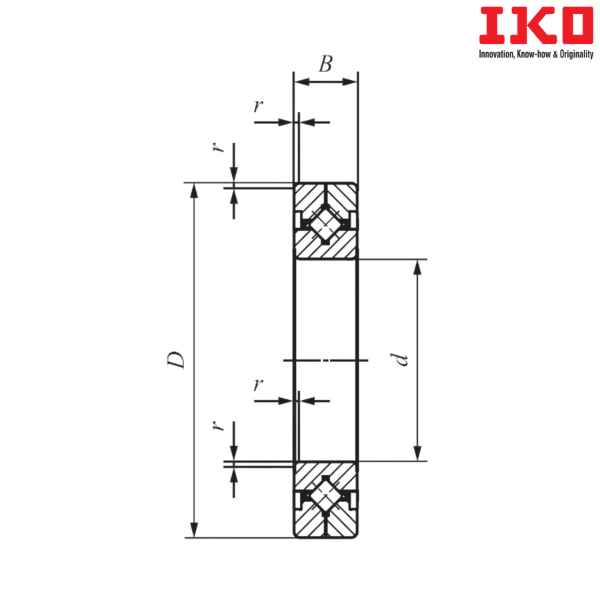

** Images are for representation purposes only
