Description
Brand - IKO
Item Number - CRBC 40040 IKO
Also Known As - CRBC40040
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 400

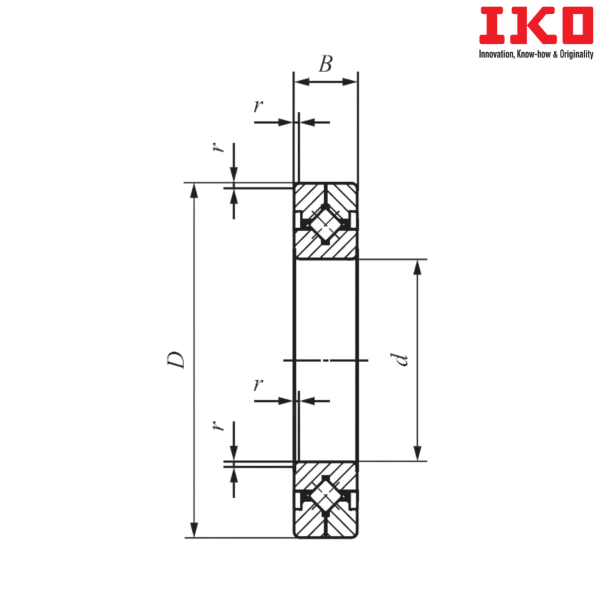

Bore Diameter (d) mm - 400
Outer Diameter (D) mm - 510
Width (B) mm - 40
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 423
Mounting Dimension (Da) mm - 483
Basic Dynamic Load Rating (C) N - 222000
Basic Static Load Rating (C0) N - 455000
Weight (kg) - 23.5
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 40040
** Images are for representation purposes only
