Description
Brand - IKO
Item Number - CRBC 25040 IKO
Also Known As - CRBC25040
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 250
Bore Diameter (d) mm - 250
Outer Diameter (D) mm - 355
Width (B) mm - 40
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 271
Mounting Dimension (Da) mm - 330
Basic Dynamic Load Rating (C) N - 179000
Basic Static Load Rating (C0) N - 299000
Weight (kg) - 14.8
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 25040

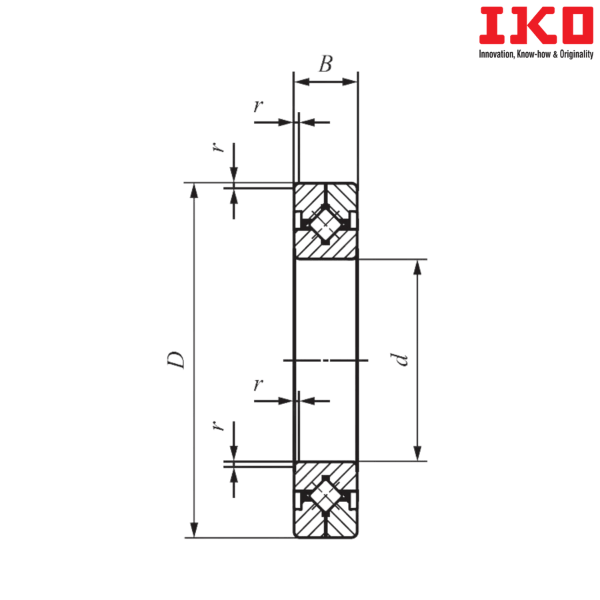

** Images are for representation purposes only
