Description
Brand - IKO
Item Number - CRBC 20035 IKO
Also Known As - CRBC20035
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 200

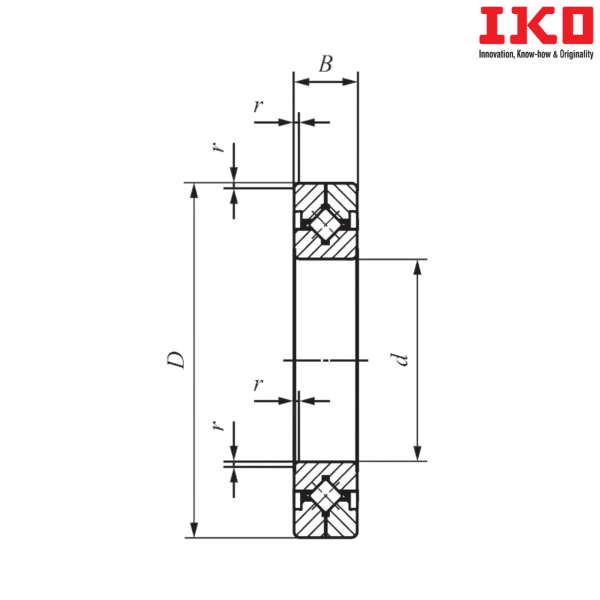

Bore Diameter (d) mm - 200
Outer Diameter (D) mm - 295
Width (B) mm - 35
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2
Mounting Dimension (da) mm - 221
Mounting Dimension (Da) mm - 274
Basic Dynamic Load Rating (C) N - 137000
Basic Static Load Rating (C0) N - 215000
Weight (kg) - 9.58
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 20035
** Images are for representation purposes only
