Description
Brand - IKO
Item Number - CRBC 20030 IKO
Also Known As - CRBC20030
Category - Open and Standard Type Crossed Roller Bearings with Cage
Shaft Diameter (mm) - 200
Bore Diameter (d) mm - 200
Outer Diameter (D) mm - 280
Width (B) mm - 30
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2
Mounting Dimension (da) mm - 218
Mounting Dimension (Da) mm - 262
Basic Dynamic Load Rating (C) N - 108000
Basic Static Load Rating (C0) N - 178000
Weight (kg) - 6.70
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 20030

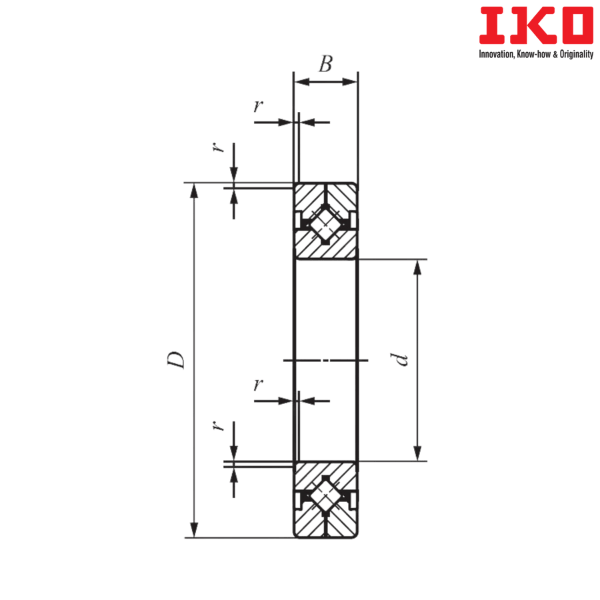

** Images are for representation purposes only
