Description
Brand - IKO
Item Number - CRBC 14025 IKO
Also Known As - CRBC14025
Category - Open and Standard Type Crossed Roller Bearings with Cage

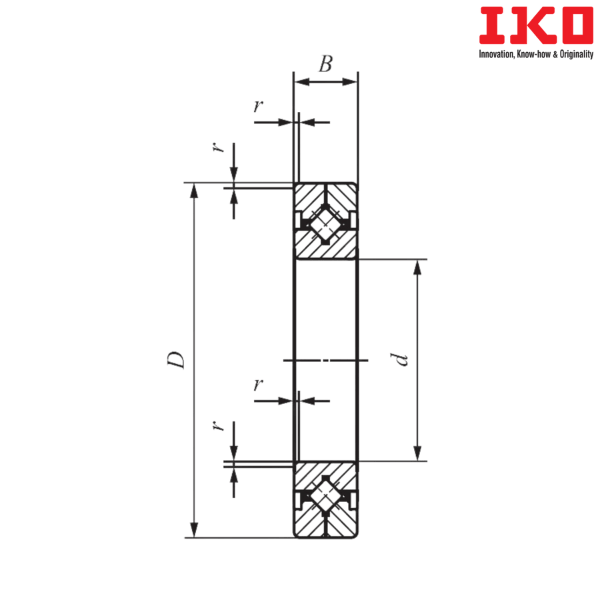

Shaft Diameter (mm) - 140
Bore Diameter (d) mm - 140
Outer Diameter (D) mm - 200
Width (B) mm - 25
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 1.5
Mounting Dimension (da) mm - 151
Mounting Dimension (Da) mm - 183
Basic Dynamic Load Rating (C) N - 50700
Basic Static Load Rating (C0) N - 79200
Weight (kg) - 2.96
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 14025 UU
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 14025
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 14025 UU
** Images are for representation purposes only
