CRBC 1 3/8 RBC

Brand - RBC
Item Number - CRBC 1 3/8 RBC
Also Known As - CRBC 1-3/8
Long-Life Cam Followers (without Crowned Outer Ring) - RBC 1 3/8
Category - Long-Life Cam Followers

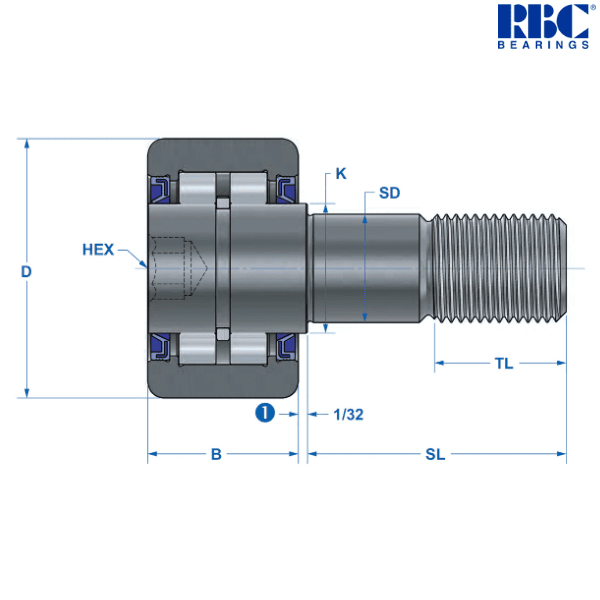

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter (D) - 1.375 (+ .000 to - .001) inch
Roller Width (B) - 0.750 (+ .000 to - .005) inch
Crown Radius (CR) - 14 inch
Shank Diameter (SD) - 0.5000 (+ .001 to - .000) inch
Shank Length (SL) - 1.25 inch
Shoulder Diameter (K) - 0.625 inch
Eff. Thread Length (TL) - 0.625 inch
Thread Class 2A - 1/2-20
Approximate Weight - 0.34 lbs
Socket Head Wrench Size - 0.25 inch
Speed Limit - 7500 rpm
Dynamic Capacity (C) - 4100 lbf
Static Capacity (C0) - 4300 lbf *
Maximum Allowable Load - 1850 lbf
Track Capacity @ 40 Rc - 2680 lbf
Maximum Clamping Torque - 180 in-lbf **
Housing Bore - 0.5000 (+ .0005 to - .0002) inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.154 kg

Description of Prefixes :
C - Crowned Outer Ring
RBC - Standard Stud (Hex Head)

Description of Possible Suffixes :
OH - Oil Holes
LU - Special Grease
NS - Without Seals
CR - Corrosion Resistant
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• To specify RBC Roller® with lubrication holes, add OH suffix.
• Seals can be removed for flow-through lubrication.
• To specify RBC Roller® without seals, add NS suffix.
• Excessive clamping torque may cause shoulder K to dig into housing.
• (1) 1/16 inch for sizes RBC 5 and larger. (refer to the image)

* Bearing Static Capacity provided for comparison only.
** Torque may be doubled for completely dry threads.

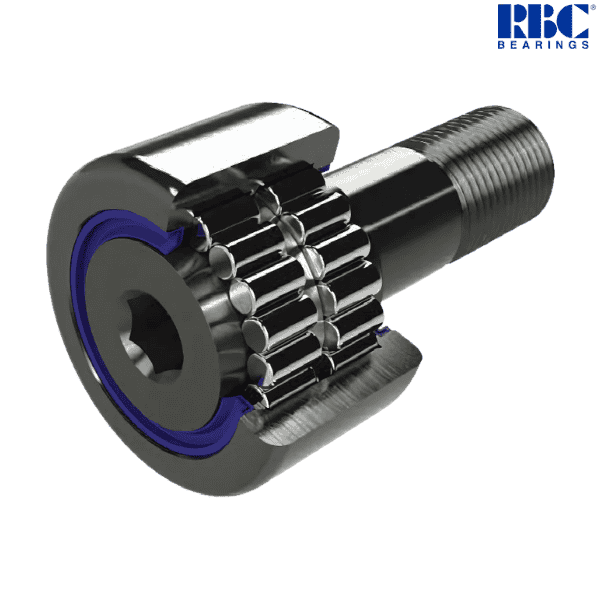

♦ ♦ Images are for representation purposes only
