Description
Brand - IKO
Item Number - CRB 9016 IKO
Also Known As - CRB9016

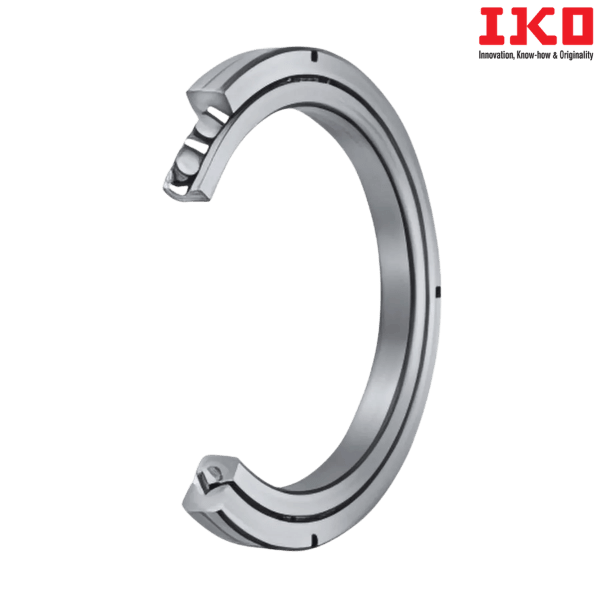

Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 90

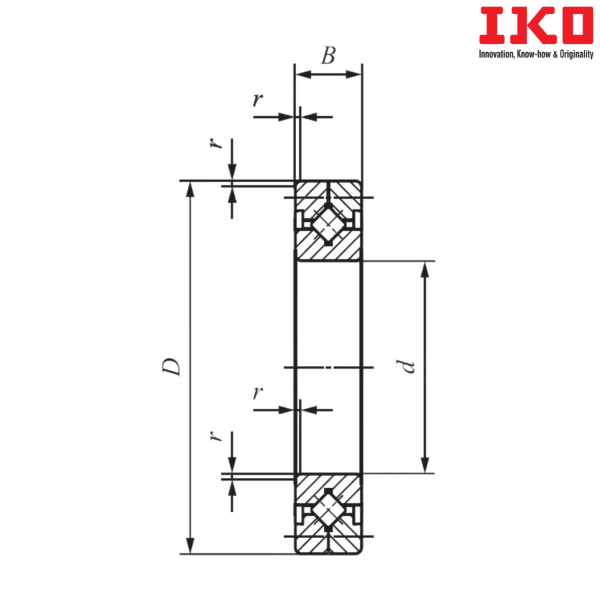

Bore Diameter (d) mm - 90
Outer Diameter (D) mm - 130
Width (B) mm - 16
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 1

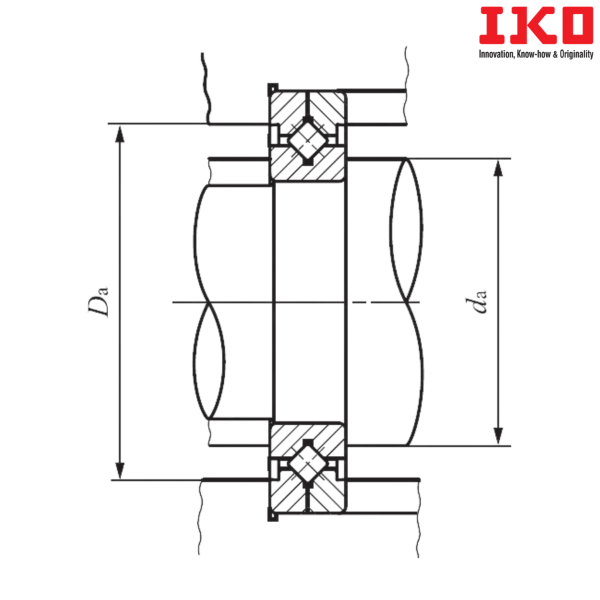

Mounting Dimension (da) mm - 98
Mounting Dimension (Da) mm - 118
Basic Dynamic Load Rating (C) N - 25900
Basic Static Load Rating (C0) N - 42100
Weight (kg) - 0.81
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 9016 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 9016
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 9016 UU
** Images are for representation purposes only
