Description
Brand - IKO
Item Number - CRB 80070 IKO
Also Known As - CRB80070

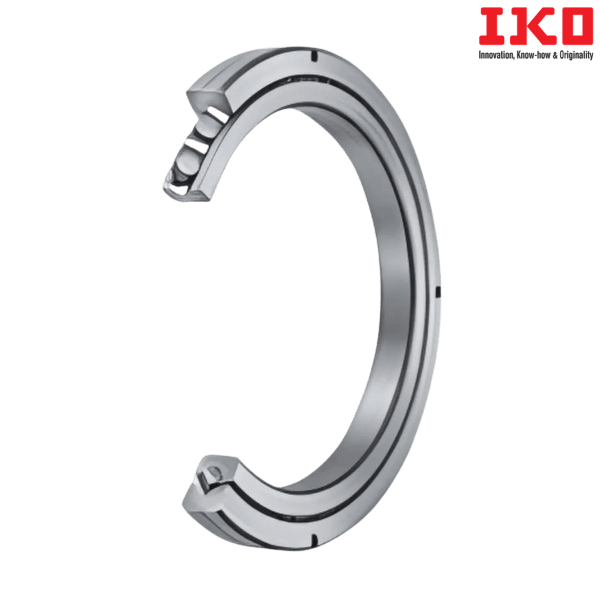

Category - Open and Standard Type Crossed Roller Bearings with Full Complement

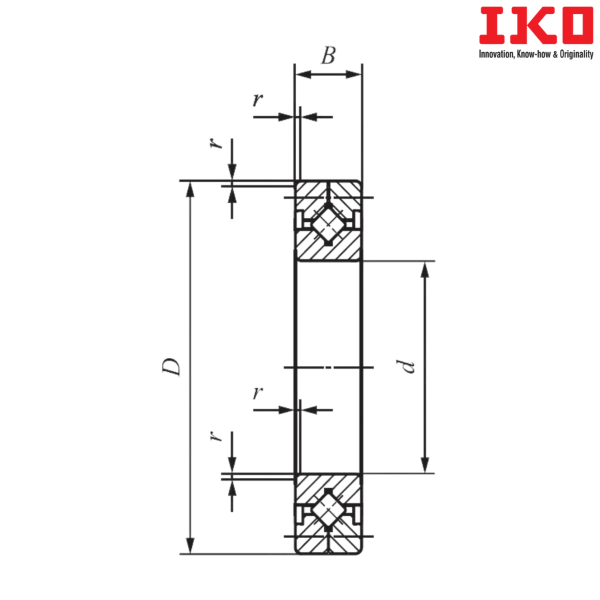

Shaft Diameter (mm) - 800
Bore Diameter (d) mm - 800
Outer Diameter (D) mm - 950
Width (B) mm - 70
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 4
Mounting Dimension (da) mm - 831
Mounting Dimension (Da) mm - 907
Basic Dynamic Load Rating (C) N - 513000
Basic Static Load Rating (C0) N - 1440000
Weight (kg) - 109
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 80070
** Images are for representation purposes only
