Description
Brand - IKO
Item Number - CRB 800100 IKO
Also Known As - CRB800100
Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 800

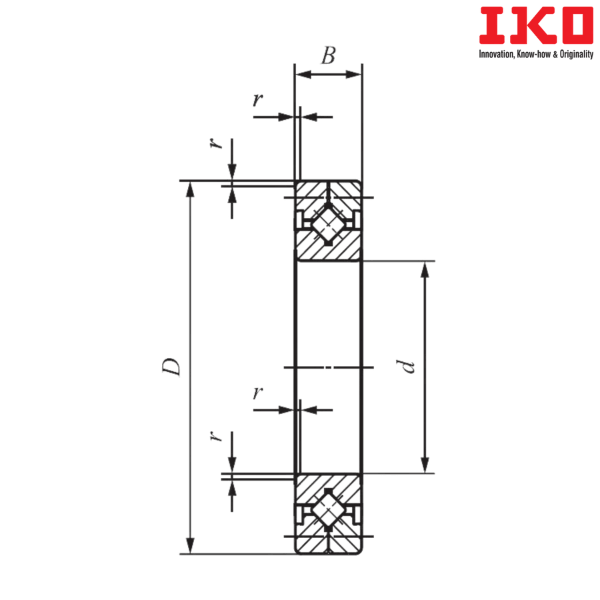

Bore Diameter (d) mm - 800
Outer Diameter (D) mm - 1030
Width (B) mm - 100
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 4
Mounting Dimension (da) mm - 840
Mounting Dimension (Da) mm - 972
Basic Dynamic Load Rating (C) N - 1140000
Basic Static Load Rating (C0) N - 2640000
Weight (kg) - 247
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 800100

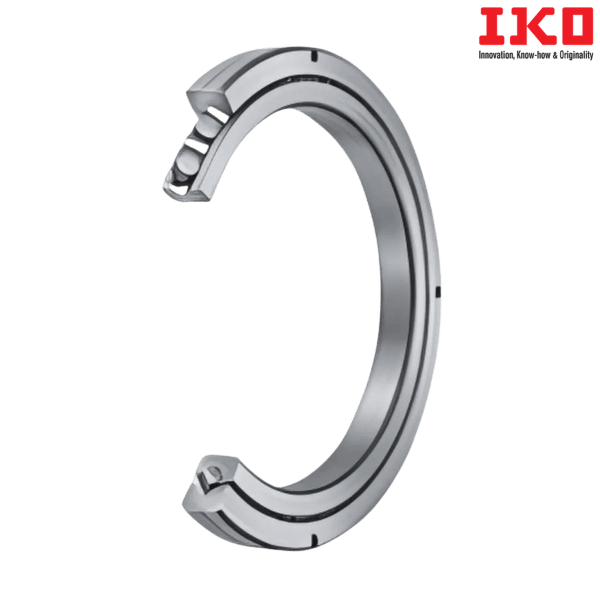

** Images are for representation purposes only
