Description
Brand - IKO
Item Number - CRB 7013 IKO
Also Known As - CRB7013
Category - Open and Standard Type Crossed Roller Bearings with Full Complement

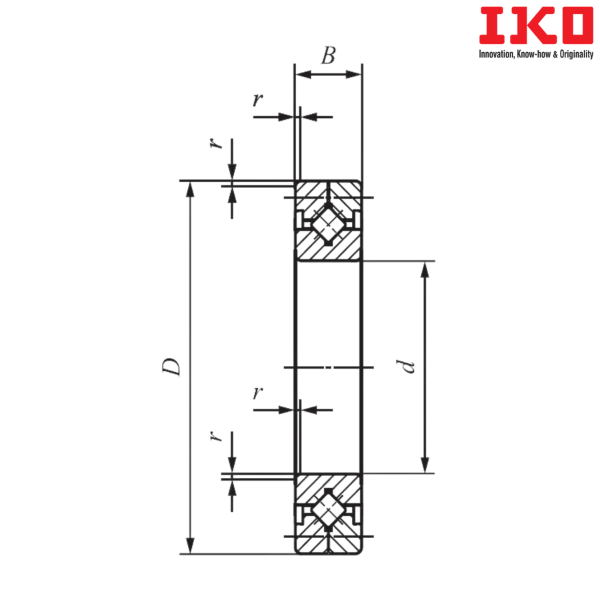

Shaft Diameter (mm) - 70
Bore Diameter (d) mm - 70
Outer Diameter (D) mm - 100
Width (B) mm - 13
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.6
Mounting Dimension (da) mm - 75
Mounting Dimension (Da) mm - 91
Basic Dynamic Load Rating (C) N - 17000
Basic Static Load Rating (C0) N - 25500
Weight (kg) - 0.38
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 7013 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 7013
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 7013 UU
** Images are for representation purposes only
