Description
Brand - IKO
Item Number - CRB 70045 IKO
Also Known As - CRB70045
Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 700

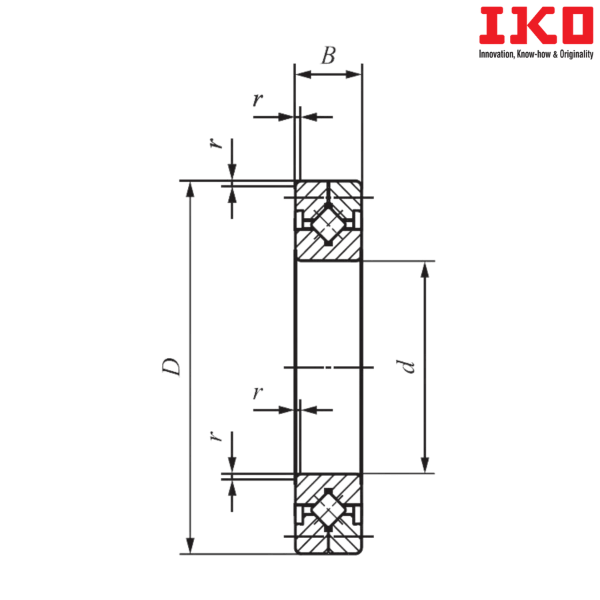

Bore Diameter (d) mm - 700
Outer Diameter (D) mm - 815
Width (B) mm - 45
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 3
Mounting Dimension (da) mm - 730
Mounting Dimension (Da) mm - 785
Basic Dynamic Load Rating (C) N - 313000
Basic Static Load Rating (C0) N - 917000
Weight (kg) - 46.5
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 70045

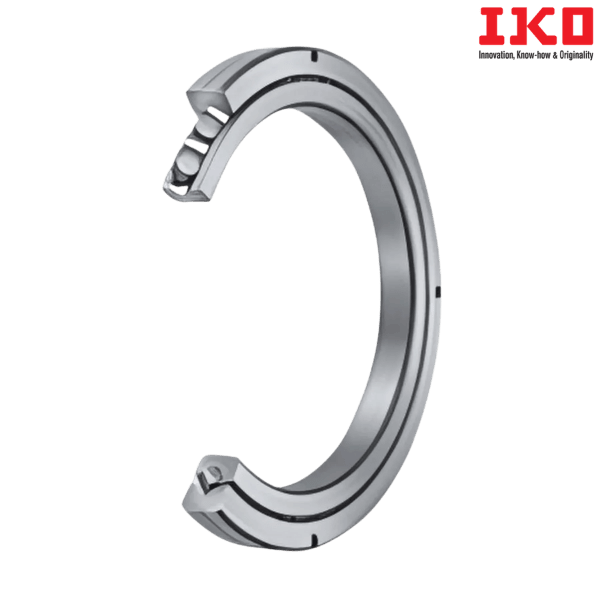

** Images are for representation purposes only
