Description
Brand - IKO
Item Number - CRB 60070 IKO
Also Known As - CRB60070
Category - Open and Standard Type Crossed Roller Bearings with Full Complement

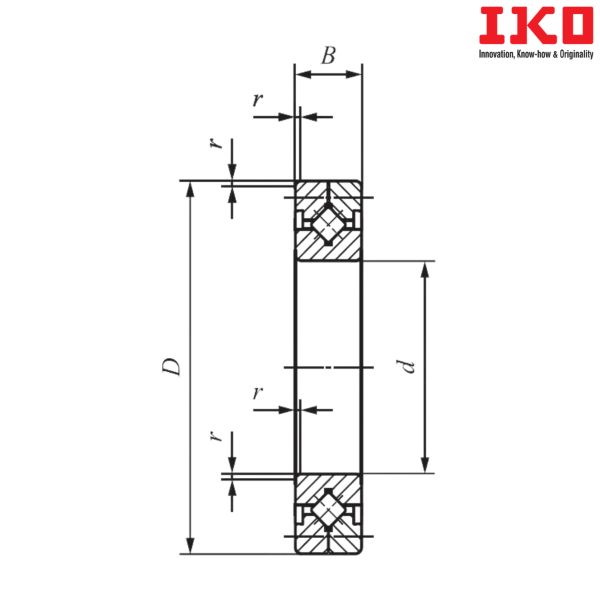

Shaft Diameter (mm) - 600
Bore Diameter (d) mm - 600
Outer Diameter (D) mm - 780
Width (B) mm - 70
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 3

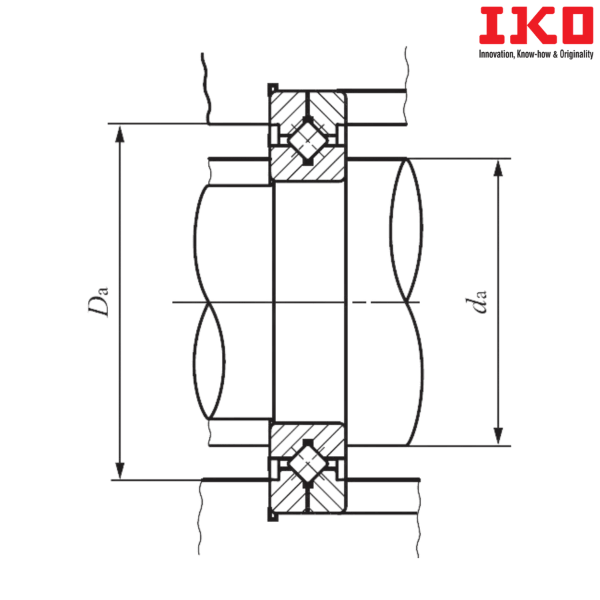

Mounting Dimension (da) mm - 630
Mounting Dimension (Da) mm - 734
Basic Dynamic Load Rating (C) N - 700000
Basic Static Load Rating (C0) N - 1540000
Weight (kg) - 102
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 60070

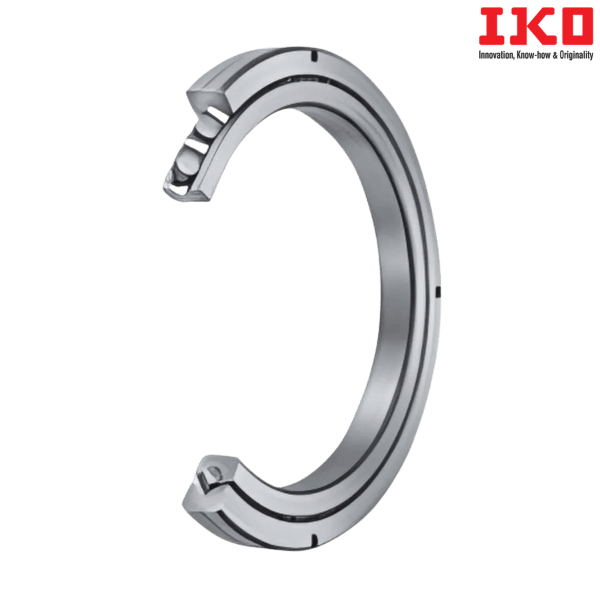

** Images are for representation purposes only
