Description
Brand - IKO
Item Number - CRB 600120 IKO
Also Known As - CRB600120
Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 600

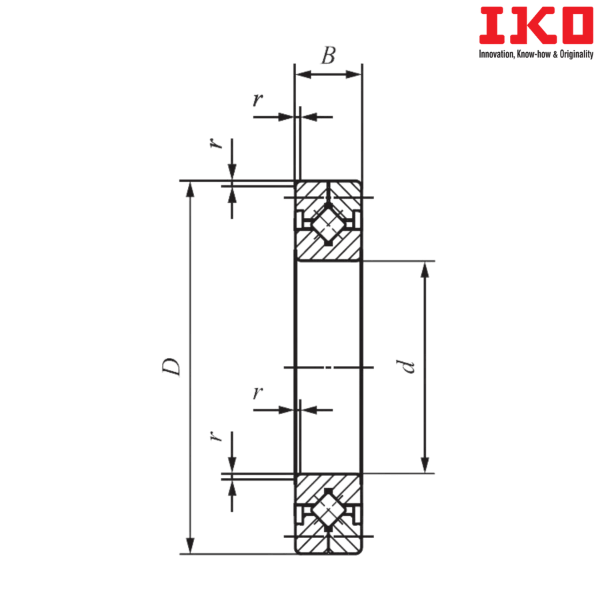

Bore Diameter (d) mm - 600
Outer Diameter (D) mm - 870
Width (B) mm - 120
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 3

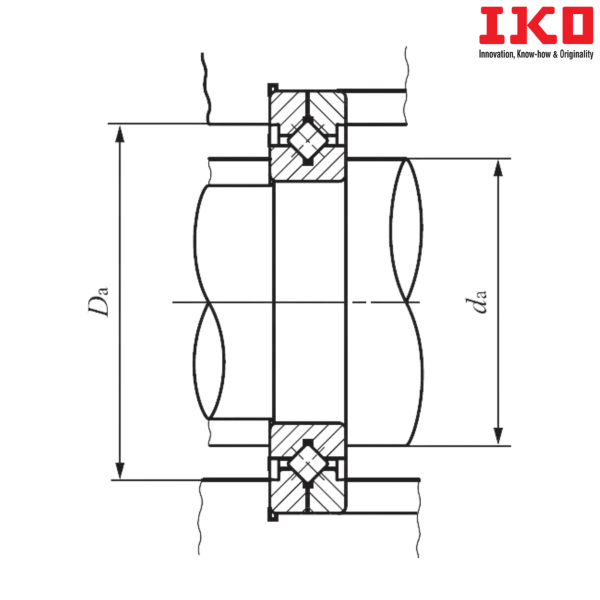

Mounting Dimension (da) mm - 643
Mounting Dimension (Da) mm - 817
Basic Dynamic Load Rating (C) N - 1490000
Basic Static Load Rating (C0) N - 2800000
Weight (kg) - 274
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 600120

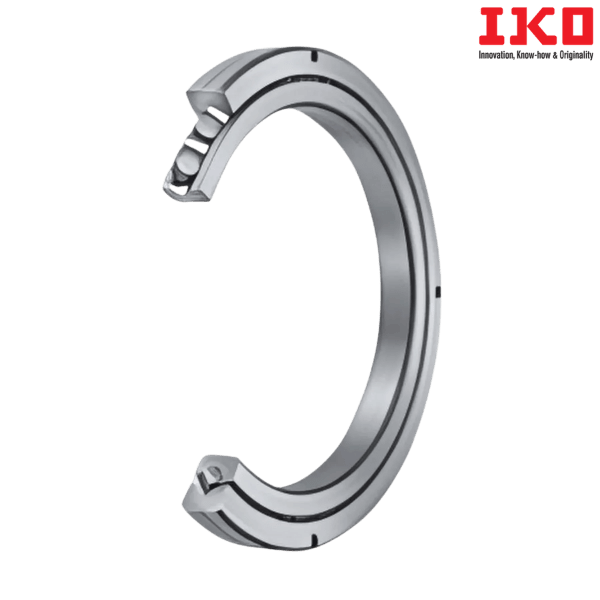

** Images are for representation purposes only
