Description
Brand - IKO
Item Number - CRB 5013 IKO
Also Known As - CRB5013

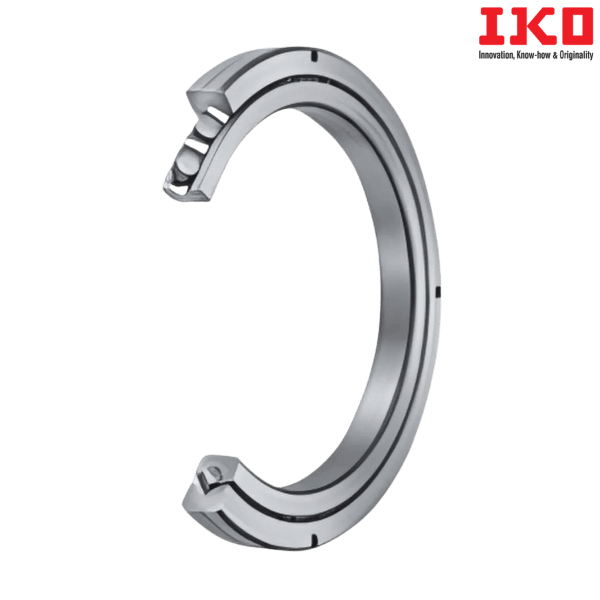

Category - Open and Standard Type Crossed Roller Bearings with Full Complement

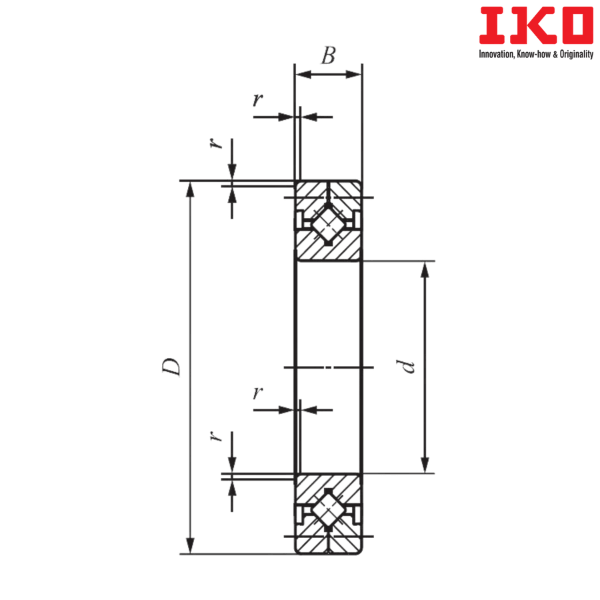

Shaft Diameter (mm) - 50
Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 80
Width (B) mm - 13
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 0.6

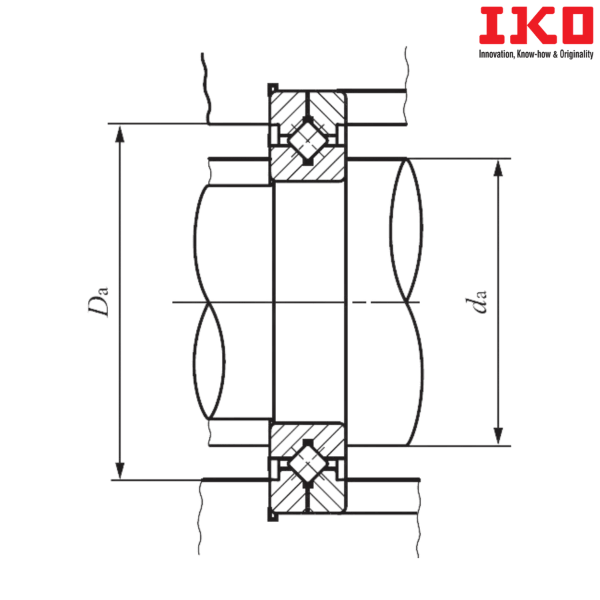

Mounting Dimension (da) mm - 55
Mounting Dimension (Da) mm - 71
Basic Dynamic Load Rating (C) N - 14200
Basic Static Load Rating (C0) N - 18400
Weight (kg) - 0.29
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 5013 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 5013
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 5013 UU
** Images are for representation purposes only
