Description
Brand - IKO
Item Number - CRB 40070 IKO
Also Known As - CRB40070
Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 400

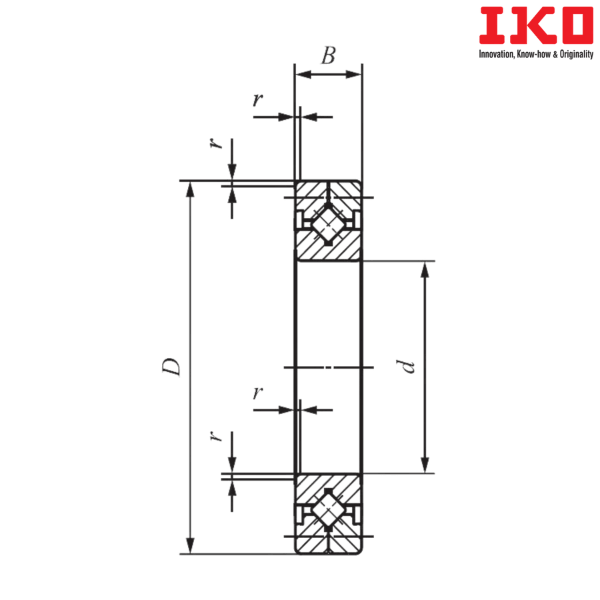

Bore Diameter (d) mm - 400
Outer Diameter (D) mm - 580
Width (B) mm - 70
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 430
Mounting Dimension (Da) mm - 532
Basic Dynamic Load Rating (C) N - 576000
Basic Static Load Rating (C0) N - 1060000
Weight (kg) - 72.4
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 40070

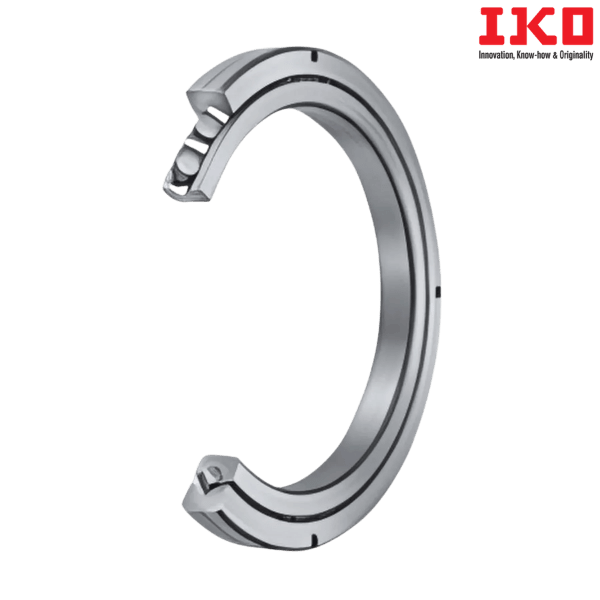

** Images are for representation purposes only
