Description
Brand - IKO
Item Number - CRB 40035 IKO
Also Known As - CRB40035
Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 400
Bore Diameter (d) mm - 400
Outer Diameter (D) mm - 480
Width (B) mm - 35
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 414
Mounting Dimension (Da) mm - 457
Basic Dynamic Load Rating (C) N - 165000
Basic Static Load Rating (C0) N - 400000
Weight (kg) - 14.5
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 40035

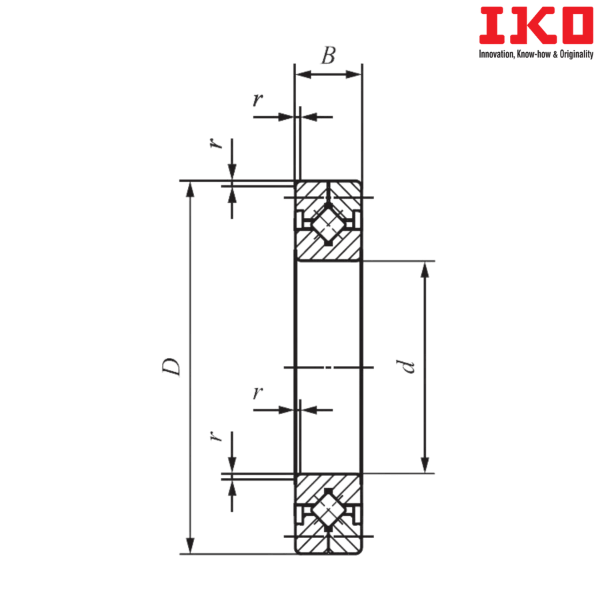

** Images are for representation purposes only
