Description
Brand - IKO
Item Number - CRB 30040 IKO
Also Known As - CRB30040
Category - Open and Standard Type Crossed Roller Bearings with Full Complement

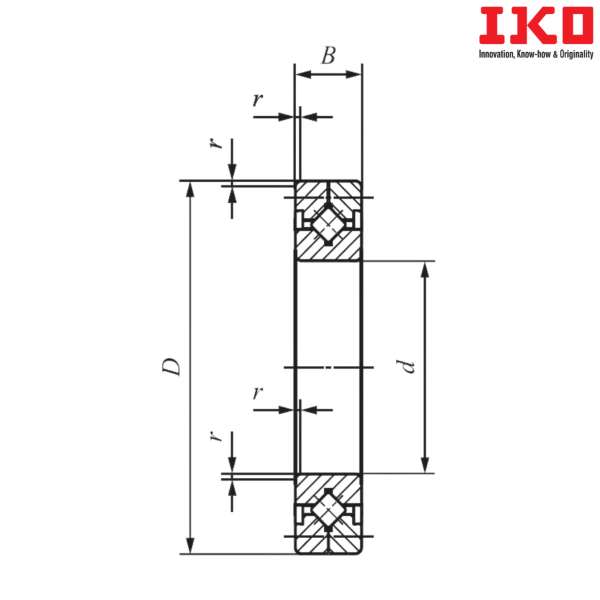

Shaft Diameter (mm) - 300
Bore Diameter (d) mm - 300
Outer Diameter (D) mm - 405
Width (B) mm - 40
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 321
Mounting Dimension (Da) mm - 381
Basic Dynamic Load Rating (C) N - 235000
Basic Static Load Rating (C0) N - 451000
Weight (kg) - 17.2
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 30040

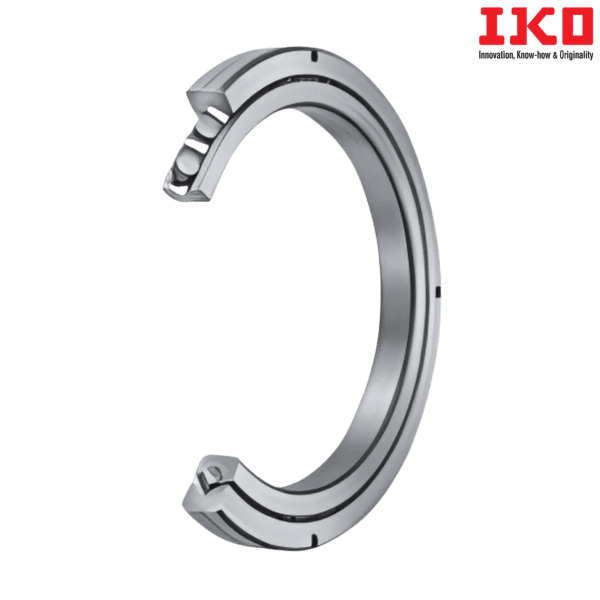

** Images are for representation purposes only
