Description
Brand - IKO
Item Number - CRB 30035 IKO
Also Known As - CRB30035
Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 300
Bore Diameter (d) mm - 300
Outer Diameter (D) mm - 395
Width (B) mm - 35
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2.5
Mounting Dimension (da) mm - 318
Mounting Dimension (Da) mm - 372
Basic Dynamic Load Rating (C) N - 205000
Basic Static Load Rating (C0) N - 408000
Weight (kg) - 13.4
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 30035

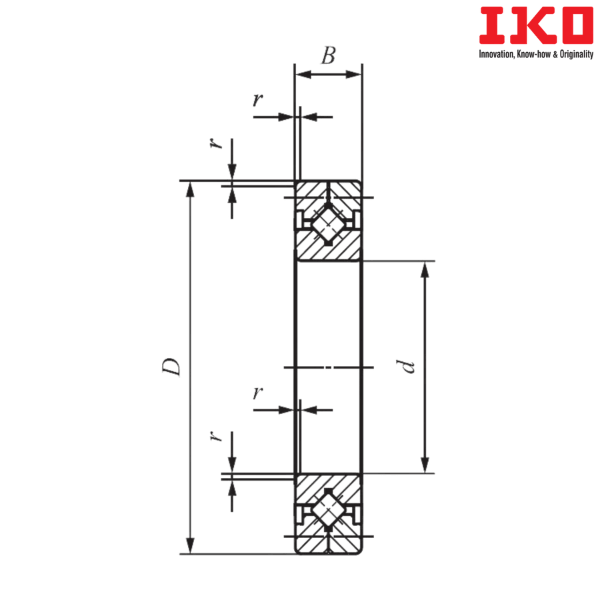

** Images are for representation purposes only
