Description
Brand - IKO
Item Number - CRB 20035 IKO
Also Known As - CRB20035
Category - Open and Standard Type Crossed Roller Bearings with Full Complement

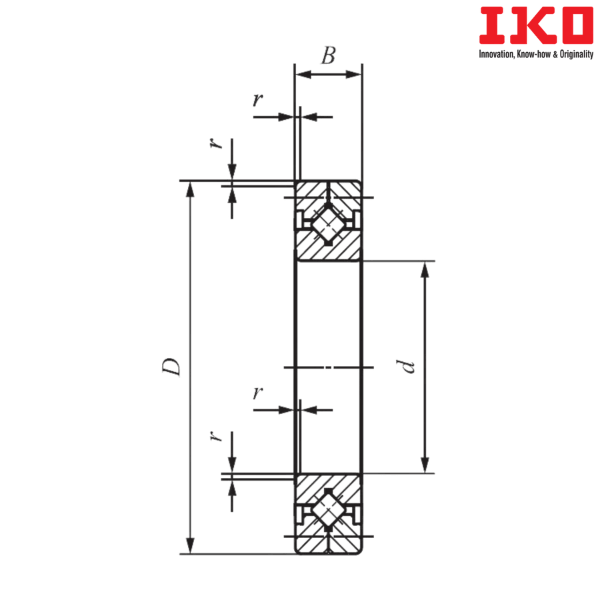

Shaft Diameter (mm) - 200
Bore Diameter (d) mm - 200
Outer Diameter (D) mm - 295
Width (B) mm - 35
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2
Mounting Dimension (da) mm - 221
Mounting Dimension (Da) mm - 274
Basic Dynamic Load Rating (C) N - 168000
Basic Static Load Rating (C0) N - 282000
Weight (kg) - 9.58
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 20035
** Images are for representation purposes only
