Description
Brand - IKO
Item Number - CRB 20025 IKO
Also Known As - CRB20025
Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 200

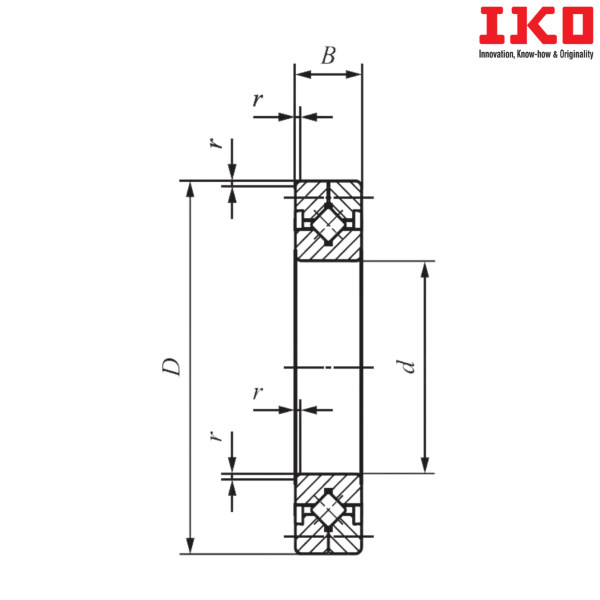

Bore Diameter (d) mm - 200
Outer Diameter (D) mm - 260
Width (B) mm - 25
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 2
Mounting Dimension (da) mm - 208
Mounting Dimension (Da) mm - 239
Basic Dynamic Load Rating (C) N - 75300
Basic Static Load Rating (C0) N - 148000
Weight (kg) - 4.00
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 20025 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 20025
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 20025 UU
** Images are for representation purposes only
