Description
Brand - IKO
Item Number - CRB 15030 IKO
Also Known As - CRB15030

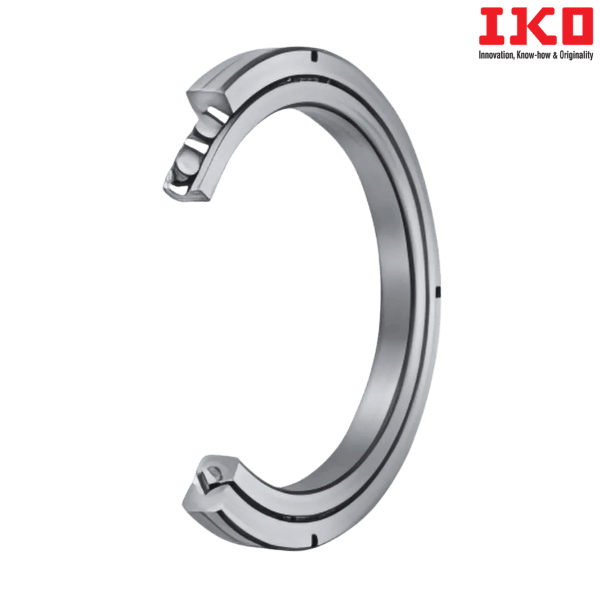

Category - Open and Standard Type Crossed Roller Bearings with Full Complement

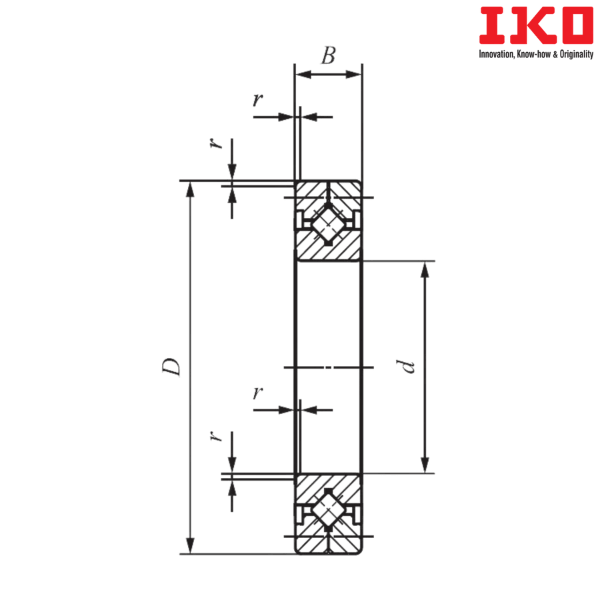

Shaft Diameter (mm) - 150
Bore Diameter (d) mm - 150
Outer Diameter (D) mm - 230
Width (B) mm - 30
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 1.5

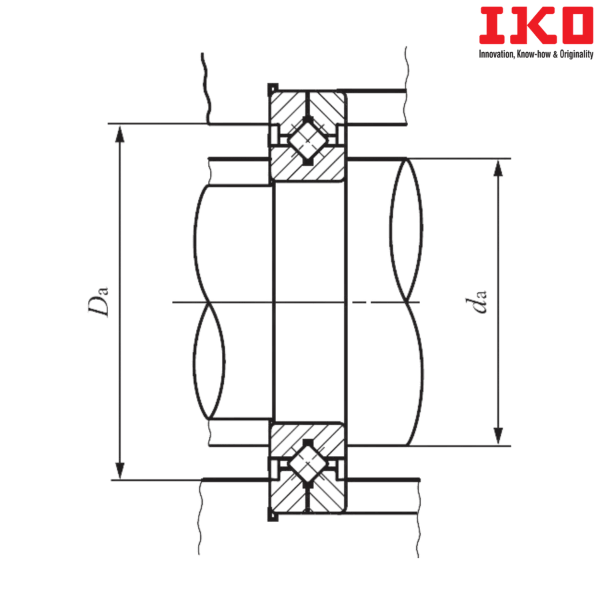

Mounting Dimension (da) mm - 166
Mounting Dimension (Da) mm - 202
Basic Dynamic Load Rating (C) N - 85900
Basic Static Load Rating (C0) N - 144000
Weight (kg) - 5.30
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 15030 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 15030
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 15030 UU
** Images are for representation purposes only
