Description
Brand - IKO
Item Number - CRB 15025 IKO
Also Known As - CRB15025
Category - Open and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 150
Bore Diameter (d) mm - 150
Outer Diameter (D) mm - 210
Width (B) mm - 25
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 1.5
Mounting Dimension (da) mm - 160
Mounting Dimension (Da) mm - 192
Basic Dynamic Load Rating (C) N - 65000
Basic Static Load Rating (C0) N - 113000
Weight (kg) - 3.16
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 15025 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 15025
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 15025 UU

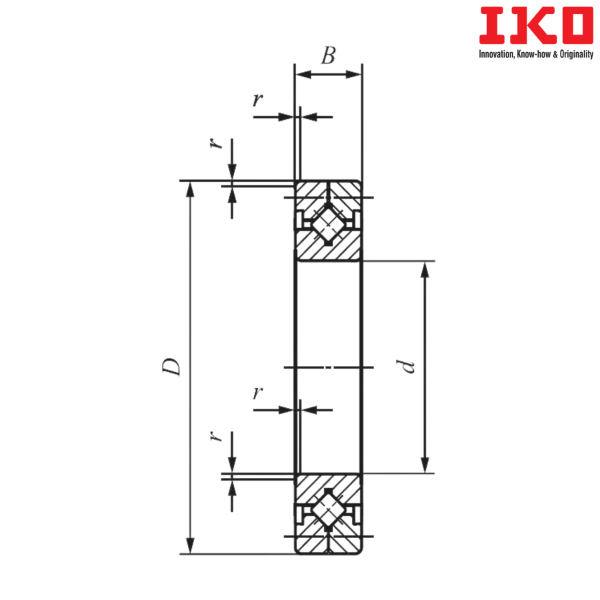

** Images are for representation purposes only
