Description
Brand - IKO
Item Number - CRB 13025 IKO
Also Known As - CRB13025
Category - Open and Standard Type Crossed Roller Bearings with Full Complement

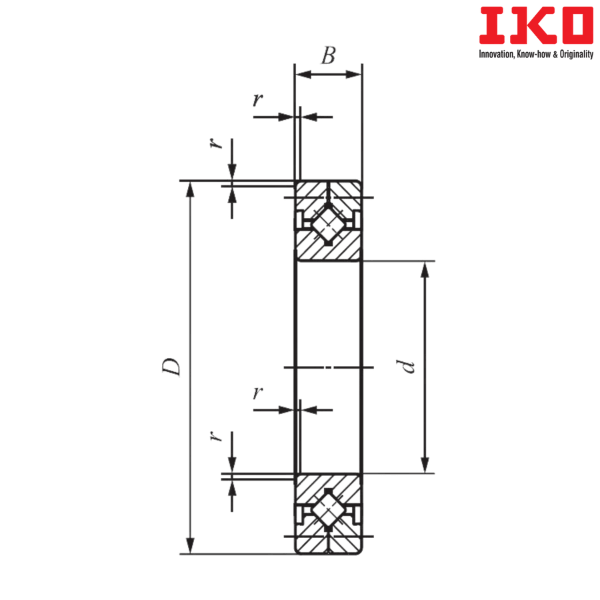

Shaft Diameter (mm) - 130
Bore Diameter (d) mm - 130
Outer Diameter (D) mm - 190
Width (B) mm - 25
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 1.5
Mounting Dimension (da) mm - 140
Mounting Dimension (Da) mm - 172
Basic Dynamic Load Rating (C) N - 61000
Basic Static Load Rating (C0) N - 99800
Weight (kg) - 2.82
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 13025 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 13025
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 13025 UU
** Images are for representation purposes only
