Description
Brand - IKO
Item Number - CRB 11020 IKO
Also Known As - CRB11020
Category - Open and Standard Type Crossed Roller Bearings with Full Complement

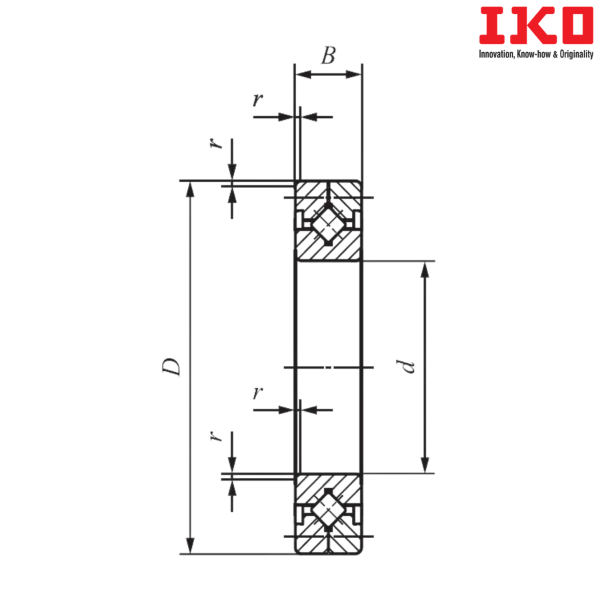

Shaft Diameter (mm) - 110
Bore Diameter (d) mm - 110
Outer Diameter (D) mm - 160
Width (B) mm - 20
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 1
Mounting Dimension (da) mm - 118
Mounting Dimension (Da) mm - 144
Basic Dynamic Load Rating (C) N - 41200
Basic Static Load Rating (C0) N - 66700
Weight (kg) - 1.56
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 11020 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 11020
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 11020 UU
** Images are for representation purposes only
