Description
Brand - IKO
Item Number - CRB 10020 UU IKO
Also Known As - CRB10020UU
Category - Sealed and Standard Type Crossed Roller Bearings with Full Complement
Shaft Diameter (mm) - 100
Bore Diameter (d) mm - 100
Outer Diameter (D) mm - 150
Width (B) mm - 20
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 1

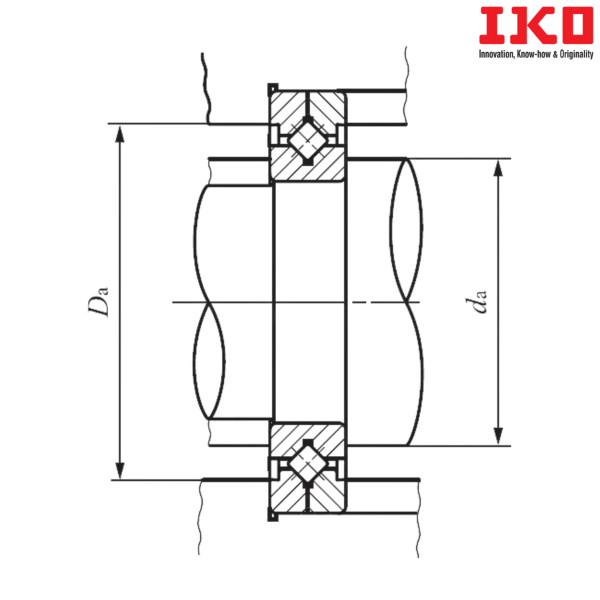

Mounting Dimension (da) mm - 108
Mounting Dimension (Da) mm - 134
Basic Dynamic Load Rating (C) N - 39400
Basic Static Load Rating (C0) N - 61100
Weight (kg) - 1.45
Open and Standard Type Crossed Roller Bearings with Full Complement - CRB 10020
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 10020
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 10020 UU
Suffix Description :
UU - Sealed Type
** Images are for representation purposes only
