Description
Brand - IKO
Item Number - CRB 10020 IKO
Also Known As - CRB10020
Category - Open and Standard Type Crossed Roller Bearings with Full Complement

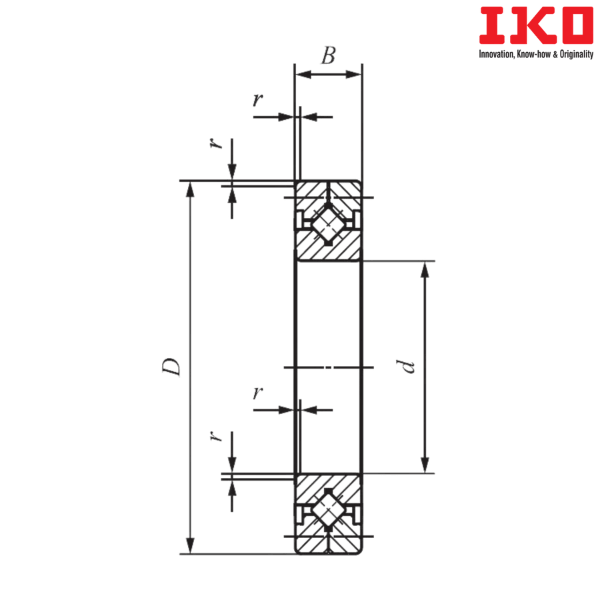

Shaft Diameter (mm) - 100
Bore Diameter (d) mm - 100
Outer Diameter (D) mm - 150
Width (B) mm - 20
Minimum Allowable Single Value of Chamfer Dimension (r) mm - 1
Mounting Dimension (da) mm - 108
Mounting Dimension (Da) mm - 134
Basic Dynamic Load Rating (C) N - 39400
Basic Static Load Rating (C0) N - 61100
Weight (kg) - 1.45
Sealed and Standard Type Crossed Roller Bearings with Full Complement - CRB 10020 UU
Open and Standard Type Crossed Roller Bearings with Cage - CRBC 10020
Sealed and Standard Type Crossed Roller Bearings with Cage - CRBC 10020 UU
** Images are for representation purposes only
