CR 8 VUU IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Cam Followers (Full Complement / With Screwdriver Slot)
Item Number - CR 8 VUU IKO
Also Known As - CR8VUU
Type - Sealed Type with Cylindrical Outer Ring
Sealed Type - CR 8 VUUR
Shield Type - CR 8 V
Shield Type - CR 8 VR

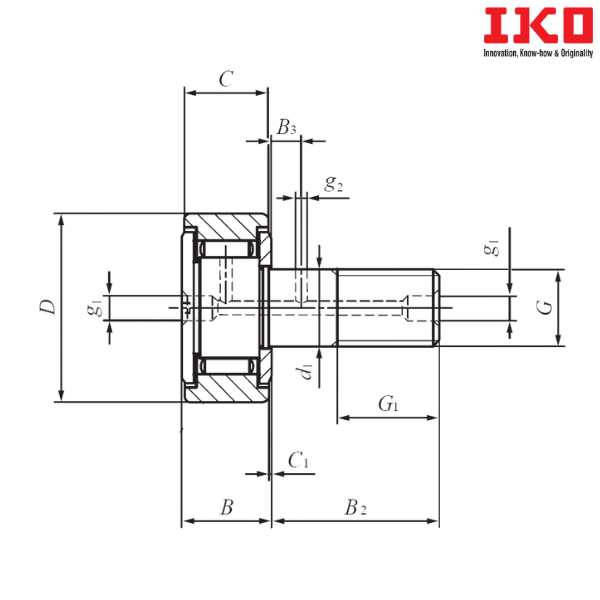

Stud Diameter (mm) - 4.826
Weight (kg) - 0.009
Outside Diameter of Outer Diameter (D) mm - 12.7
Outside Diameter of Outer Diameter (D) inch - 0.5
Width of Outer Ring (C) mm - 8.731
Width of Outer Ring (C) inch - 0.34375
Boundary Dimension (d1) mm - 4.826
G - No.10-32
Boundary Dimension (G1) mm - 6.35
Boundary Dimension (G1) inch - 0.25
Maximum Boundary Dimension (B) mm - 10.2
Maximum Boundary Dimension (B) inch - 0.4
Boundary Dimension (B2) mm - 12.7
Boundary Dimension (B2) inch - 0.5
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 3.175
Boundary Dimension (g1) inch - 0.125
Boundary Dimension (r) mm - 0.397
Boundary Dimension (r) inch - 0.015625

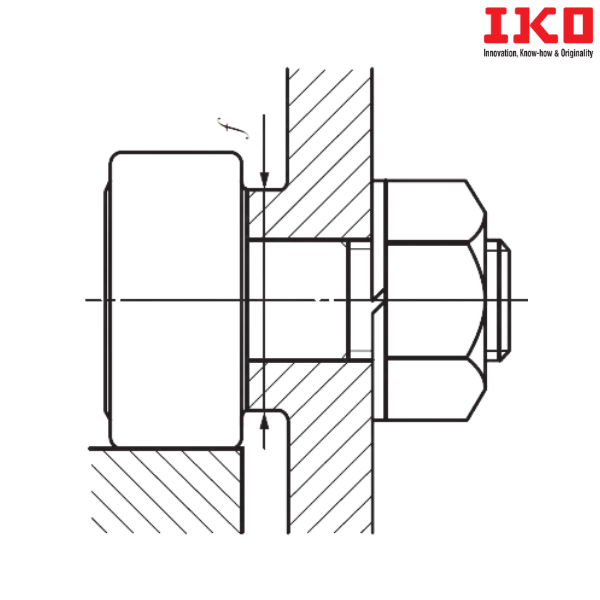

Minimum Mounting Dimension (f min) mm - 8.334
Minimum Mounting Dimension (f min) inch - 0.328125
Maximum Tightening Torque (N-m) - 1.4
Basic Dynamic Load Rating (C) N - 4260
Basic Static Load Rating (C0) N - 4750

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR - Inch Series Cam Followers (With Screwdriver Slot)
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
