Description
Brand - IKO
Category - Inch Series Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CR 8-1 VBS IKO
Also Known As - CR8-1VBS
Type - Sealed type with ThrustDisk Seals (With Cylindrical Outer Ring)
Sealed type with ThrustDisk Seals (With Crowned Outer Ring) - CR 8-1 VBSR
Stud Diameter (mm) - 4.826
Weight (kg) - 0.01

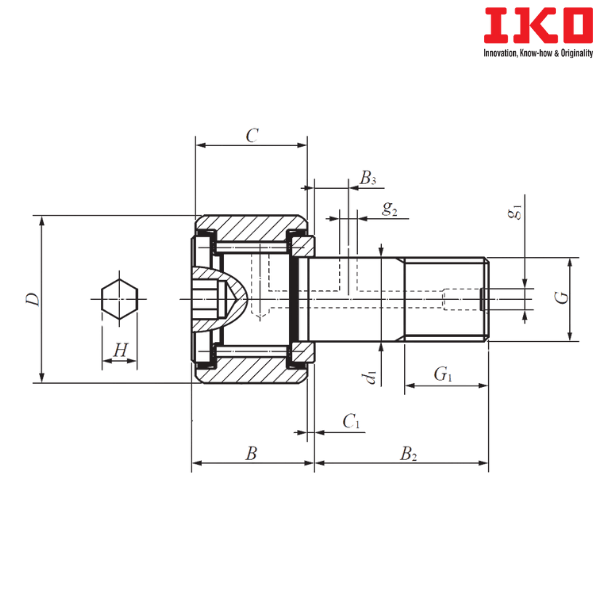

Outside Diameter of Outer Diameter (D) mm - 12.7
Outside Diameter of Outer Diameter (D) inch - 0.5
Width of Outer Ring (C) mm - 9.525
Width of Outer Ring (C) inch - 0.375
Boundary Dimension (d1) mm - 4.826
G - No.10-32
Boundary Dimension (G1) mm - 6.35
Boundary Dimension (G1) inch - 0.25
Maximum Boundary Dimension (B) mm - 10.9
Maximum Boundary Dimension (B) inch - 0.43
Boundary Dimension (B2) mm - 15.875
Boundary Dimension (B2) inch - 0.625
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (H) mm - 3.175
Boundary Dimension (H) inch - 0.125

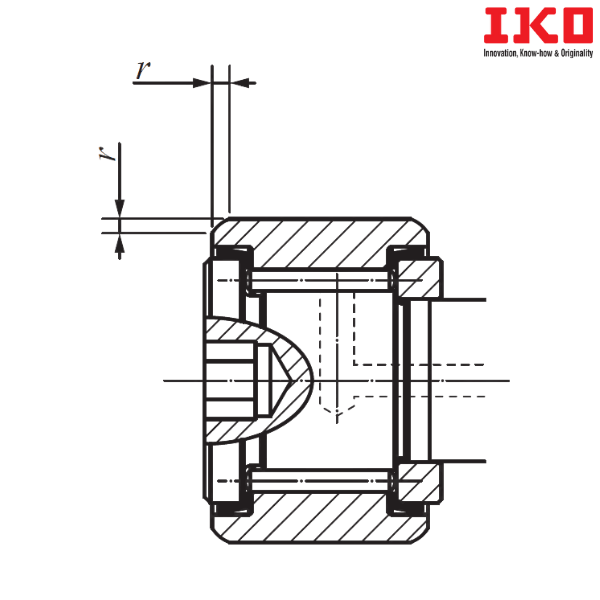

Boundary Dimension (r) mm - 0.397
Boundary Dimension (r) inch - 0.015625
Minimum Mounting Dimension (f min) mm - 8.334
Minimum Mounting Dimension (f min) inch - 0.328125
Maximum Tightening Torque (N-m) - 1.4
Basic Dynamic Load Rating (C) N - 4260
Basic Static Load Rating (C0) N - 4750
Notes :
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
S - Sealed type with ThrustDisk Seals

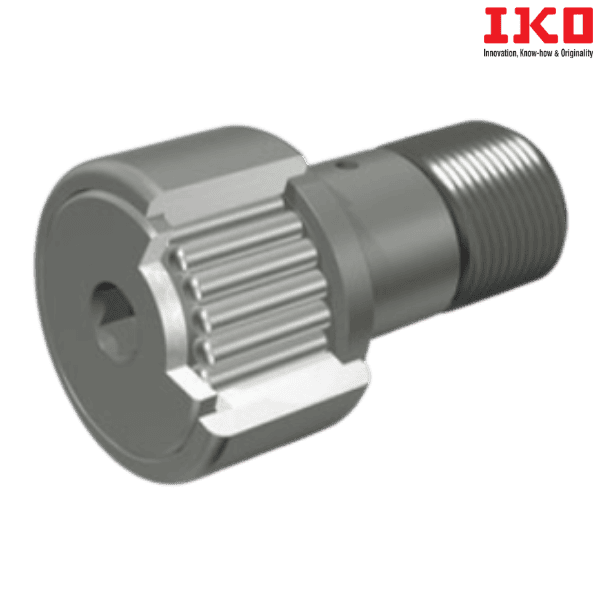

** Images are for representation purposes only
