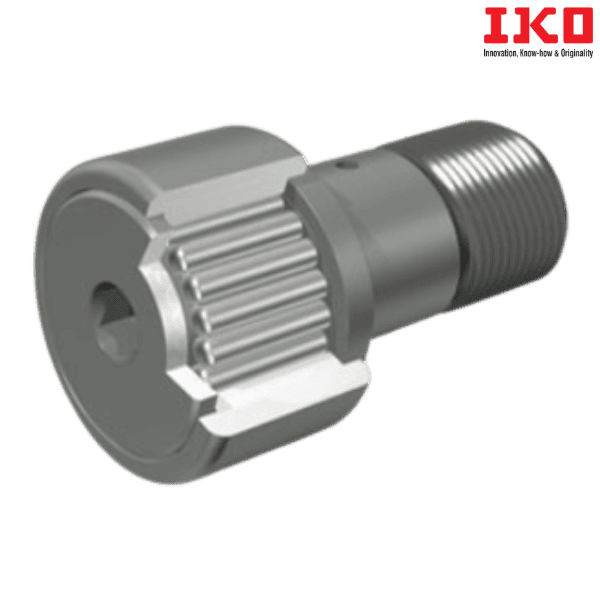

CR 48 VUU IKO

Brand - IKO
Category - Inch Series Cam Followers (Full Complement / With Screwdriver Slot)
Item Number - CR 48 VUU IKO
Also Known As - CR48VUU
Type - Sealed Type with Cylindrical Outer Ring
Stud Diameter (mm) - 31.75
Stud Diameter (inch) - 1.25
Weight (kg) - 1.96

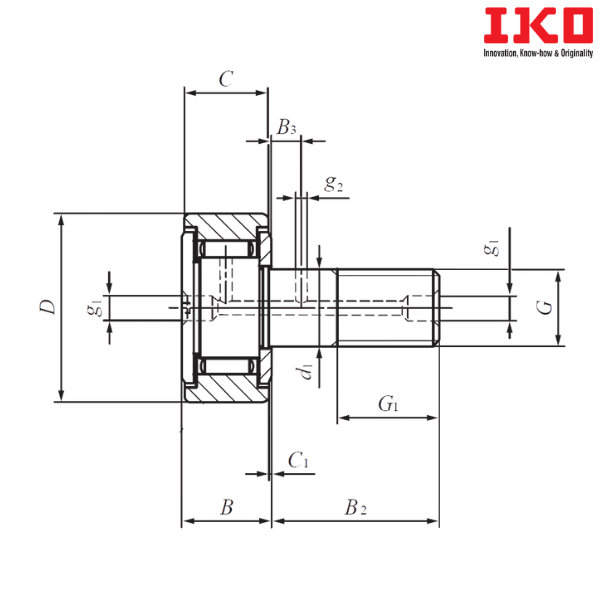

Outside Diameter of Outer Diameter (D) mm - 76.2
Outside Diameter of Outer Diameter (D) inch - 3
Width of Outer Ring (C) mm - 44.45
Width of Outer Ring (C) inch - 1.75
Boundary Dimension (d1) mm - 31.75
Boundary Dimension (d1) inch - 1.25
G - 1 1/4 - 12
Boundary Dimension (G1) mm - 31.75
Boundary Dimension (G1) inch - 1.25
Maximum Boundary Dimension (B) mm - 46.4
Maximum Boundary Dimension (B) inch - 1.83
Boundary Dimension (B2) mm - 63.5
Boundary Dimension (B2) inch - 2.5
Boundary Dimension (B3) mm - 15.875
Boundary Dimension (B3) inch - 0.625
Boundary Dimension (C1) mm - 1.588
Boundary Dimension (C1) inch - 0.0625
Boundary Dimension (g1) mm - 6.35
Boundary Dimension (g1) inch - 0.25
Boundary Dimension (g2) mm - 4.762
Boundary Dimension (g2) inch - 0.1875

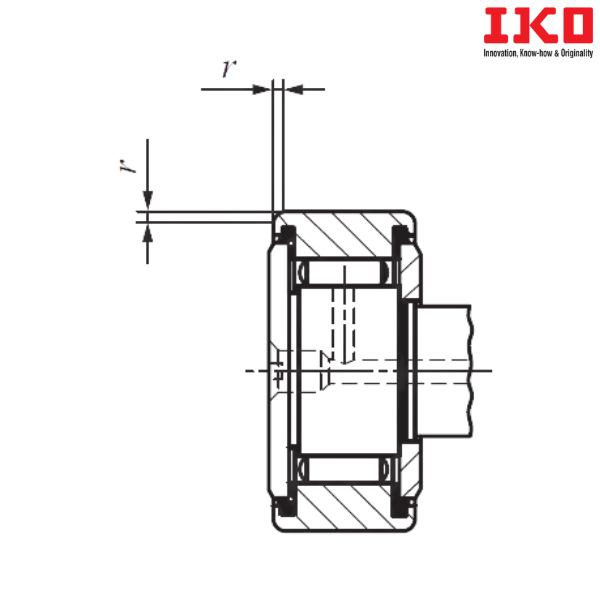

Boundary Dimension (r) mm - 2.381
Boundary Dimension (r) inch - 0.09375

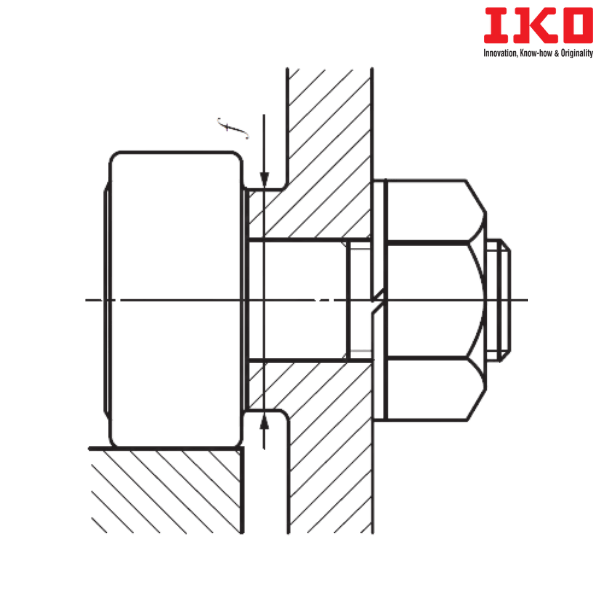

Minimum Mounting Dimension (f min) mm - 51.991
Minimum Mounting Dimension (f min) inch - 2.046875
Maximum Tightening Torque (N-m) - 500
Basic Dynamic Load Rating (C) N - 77600
Basic Static Load Rating (C0) N - 172000

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR - Inch Series Cam Followers (With Screwdriver Slot)
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
