Description
Brand - IKO
Category - Inch Series Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CR 36 VBR IKO
Also Known As - CR36VBR
Type - Shield Type with Crowned Outer Ring
Shield Type - CR 36 VB
Sealed Type - CR 36 VBUUR
Sealed Type - CR 36 VBUU
Stud Diameter (mm) - 22.225
Stud Diameter (inch) - 0.875
Weight (kg) - 0.759

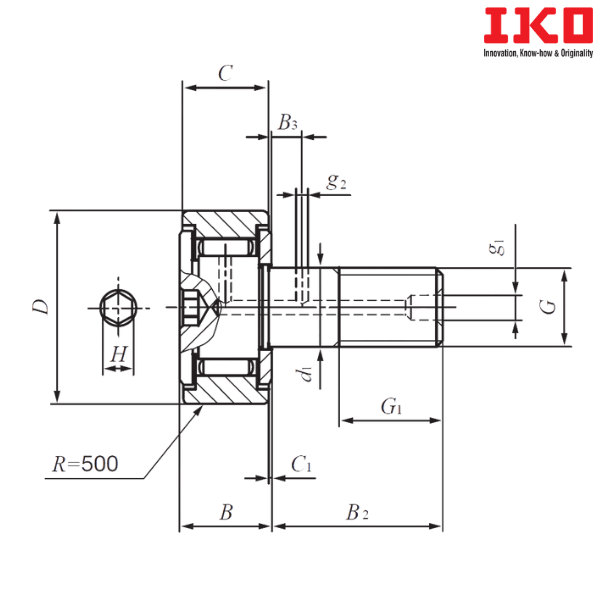

Outside Diameter of Outer Diameter (D) mm - 57.15
Outside Diameter of Outer Diameter (D) inch - 2.25
Width of Outer Ring (C) mm - 31.75
Width of Outer Ring (C) inch - 1.25
Boundary Dimension (d1) mm - 22.225
Boundary Dimension (d1) inch - 0.875
G - 7/8 - 14
Boundary Dimension (G1) mm - 25.4
Boundary Dimension (G1) inch - 1
Maximum Boundary Dimension (B) mm - 33.5
Maximum Boundary Dimension (B) inch - 1.32
Boundary Dimension (B2) mm - 50.8
Boundary Dimension (B2) inch - 2
Boundary Dimension (B3) mm - 12.7
Boundary Dimension (B3) inch - 0.5
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 4.762
Boundary Dimension (g2) inch - 0.1875
Boundary Dimension (H) mm - 11.112
Boundary Dimension (H) inch - 0.4375
Boundary Dimension (r) mm - 1.588
Boundary Dimension (r) inch - 0.0625

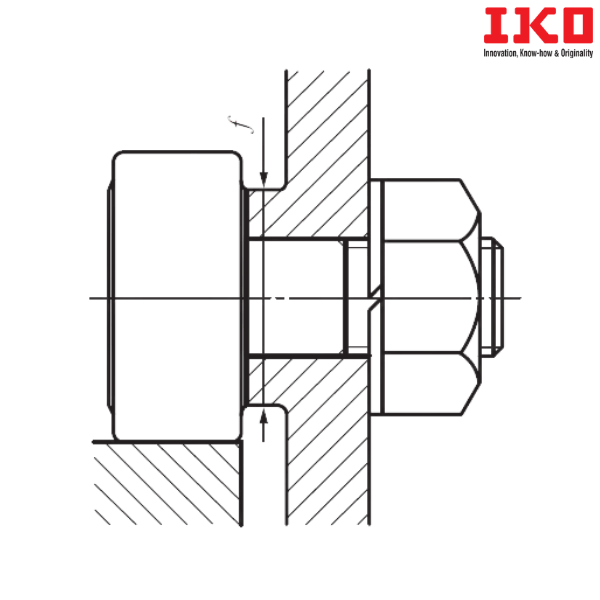

Minimum Mounting Dimension (f min) mm - 37.306
Minimum Mounting Dimension (f min) inch - 1.46875
Maximum Tightening Torque (N-m) - 162
Basic Dynamic Load Rating (C) N - 45700
Basic Static Load Rating (C0) N - 80600
Notes :
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
R - With Crowned Outer Ring
** Images are for representation purposes only
