Description
Brand - IKO
Category - Inch Series Cam Followers (Full Complement / With Screwdriver Slot)
Item Number - CR 30 VUUR IKO
Also Known As - CR30VUUR
Type - Sealed Type with Crowned Outer Ring
Shield Type - CR 30 V
Shield Type - CR 30 VR
Sealed Type - CR 30 VUU
Stud Diameter (mm) - 19.05
Stud Diameter (inch) - 0.75
Weight (kg) - 0.418

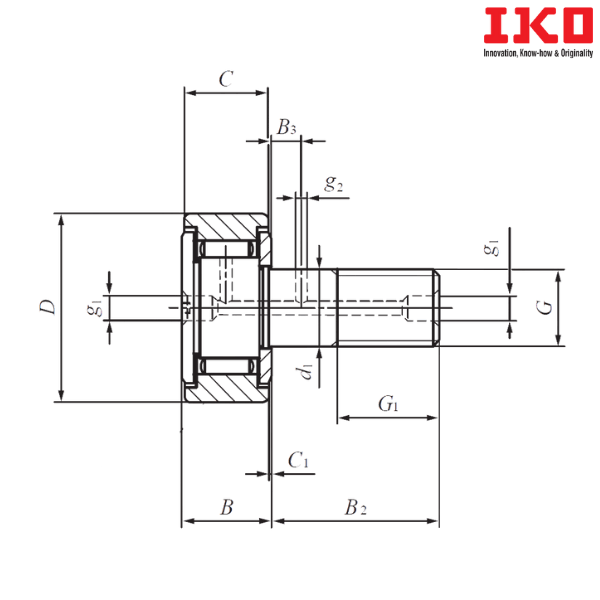

Outside Diameter of Outer Diameter (D) mm - 47.625
Outside Diameter of Outer Diameter (D) inch - 1.875
Width of Outer Ring (C) mm - 25.4
Width of Outer Ring (C) inch - 1
Boundary Dimension (d1) mm - 19.05
Boundary Dimension (d1) inch - 0.75
G - 3/4 - 16
Boundary Dimension (G1) mm - 22.225
Boundary Dimension (G1) inch - 0.875
Maximum Boundary Dimension (B) mm - 26.8
Maximum Boundary Dimension (B) inch - 1.06
Boundary Dimension (B2) mm - 44.45
Boundary Dimension (B2) inch - 1.75
Boundary Dimension (B3) mm - 11.112
Boundary Dimension (B3) inch - 0.4375
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 3.969
Boundary Dimension (g2) inch - 0.15625
Boundary Dimension (r) mm - 1.588
Boundary Dimension (r) inch - 0.0625

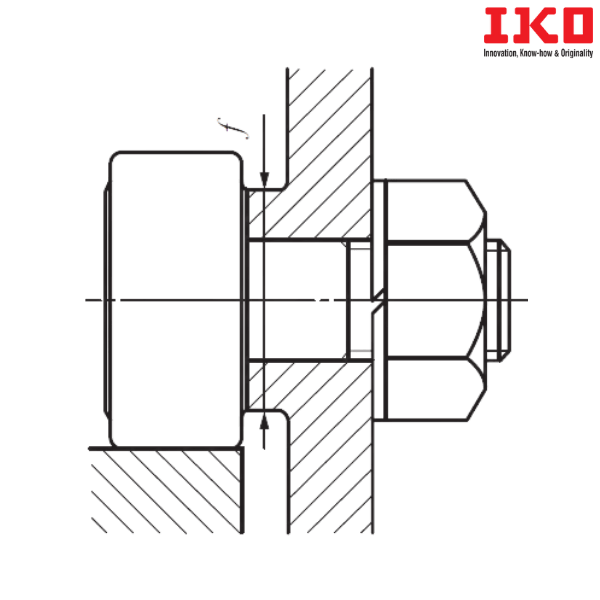

Minimum Mounting Dimension (f min) mm - 32.543
Minimum Mounting Dimension (f min) inch - 1.28125
Maximum Tightening Torque (N-m) - 100
Basic Dynamic Load Rating (C) N - 35300
Basic Static Load Rating (C0) N - 55600
Notes :
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR - Inch Series Cam Followers (With Screwdriver Slot)
V - Full Complement Type
UU - Sealed Type

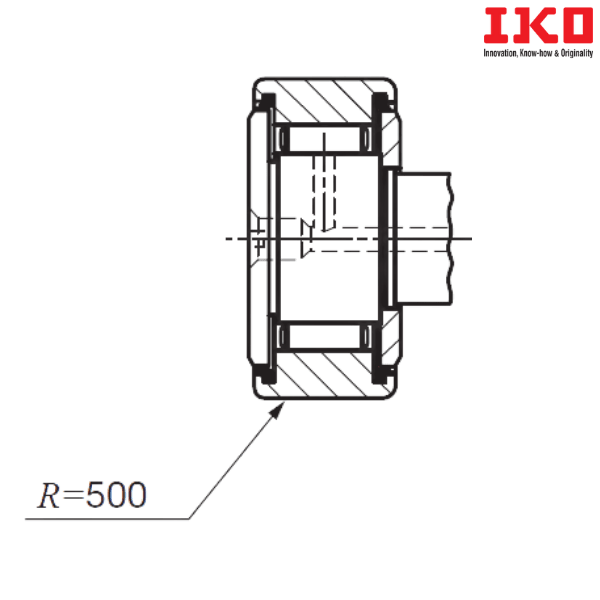

R - With Crowned Outer Ring

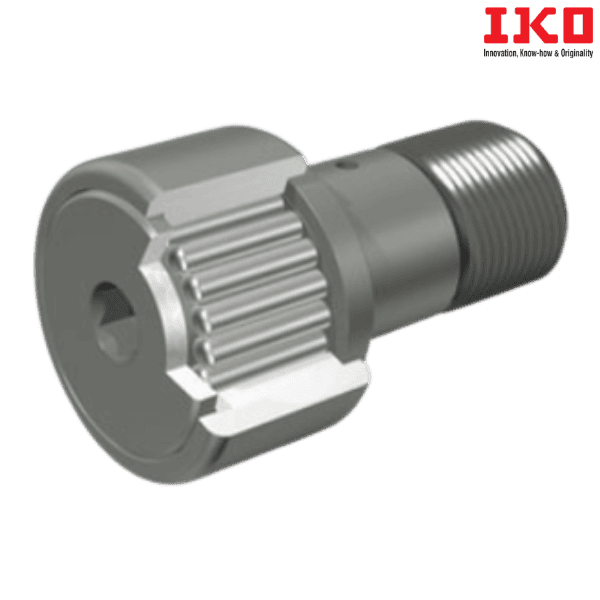

** Images are for representation purposes only
