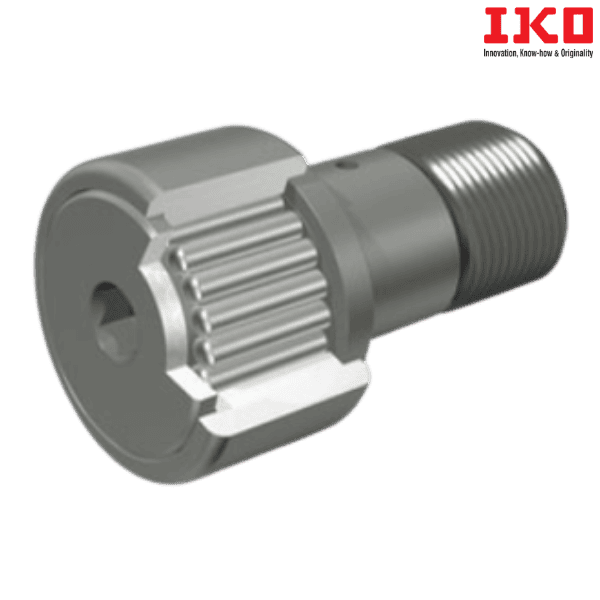

CR 24 VUUR IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Cam Followers (Full Complement / With Screwdriver Slot)
Item Number - CR 24 VUUR IKO
Also Known As - CR24VUUR
Type - Sealed Type with Crowned Outer Ring
Shield Type - CR 24 V
Shield Type - CR 24 VR
Sealed Type - CR 24 VUU
Stud Diameter (mm) - 15.875
Stud Diameter (inch) - 0.625
Weight (kg) - 0.23

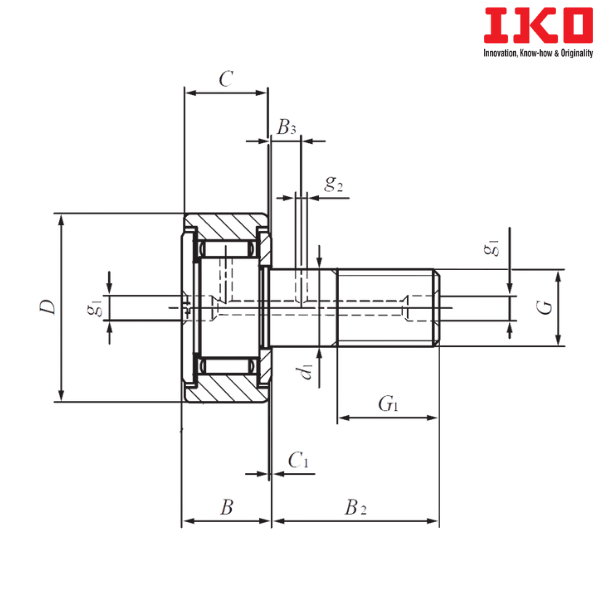

Outside Diameter of Outer Diameter (D) mm - 38.1
Outside Diameter of Outer Diameter (D) inch - 1.5
Width of Outer Ring (C) mm - 22.225
Width of Outer Ring (C) inch - 0.875
Boundary Dimension (d1) mm - 15.875
Boundary Dimension (d1) inch - 0.625
G - 5/8 - 18
Boundary Dimension (G1) mm - 19.05
Boundary Dimension (G1) inch - 0.75
Maximum Boundary Dimension (B) mm - 23.6
Maximum Boundary Dimension (B) inch - 0.93
Boundary Dimension (B2) mm - 38.1
Boundary Dimension (B2) inch - 1.5
Boundary Dimension (B3) mm - 9.525
Boundary Dimension (B3) inch - 0.375
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 3.969
Boundary Dimension (g2) inch - 0.15625
Boundary Dimension (r) mm - 1.588
Boundary Dimension (r) inch - 0.0625

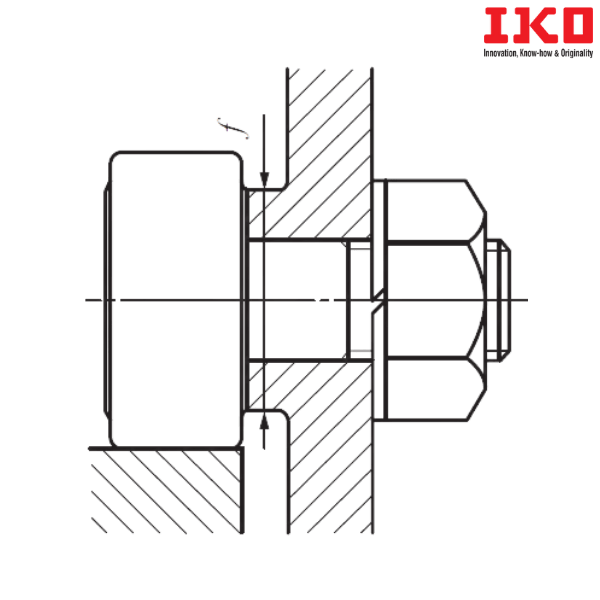

Minimum Mounting Dimension (f min) mm - 26.196
Minimum Mounting Dimension (f min) inch - 1.046875
Maximum Tightening Torque (N-m) - 55.7
Basic Dynamic Load Rating (C) N - 28200
Basic Static Load Rating (C0) N - 40100

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR - Inch Series Cam Followers (With Screwdriver Slot)
V - Full Complement Type
UU - Sealed Type

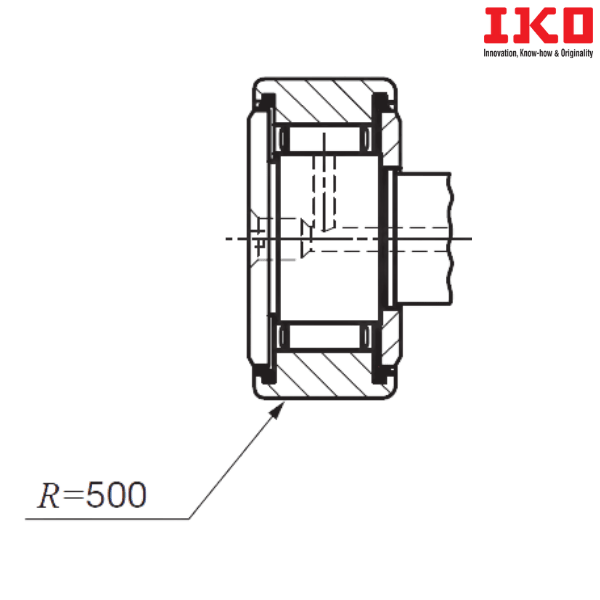

R - With Crowned Outer Ring

** Images are for representation purposes only
