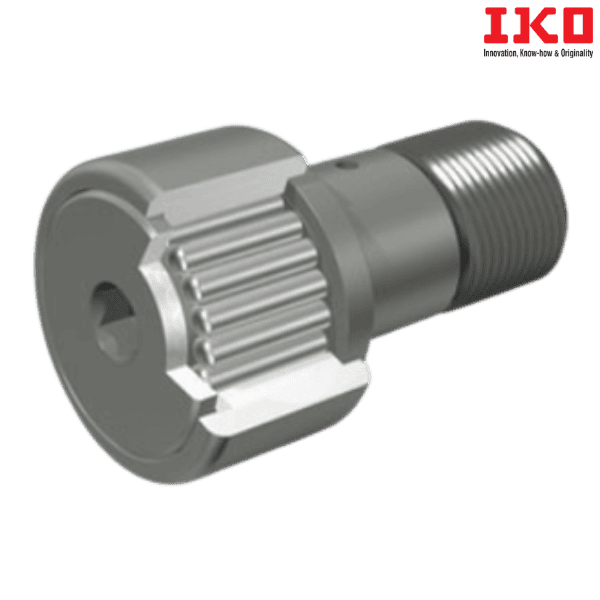

CR 20 VUU IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO
Category - Inch Series Cam Followers (Full Complement / With Screwdriver Slot)
Item Number - CR 20 VUU IKO
Also Known As - CR20VUU
Type - Sealed Type with Cylindrical Outer Ring
Sealed Type - CR 20 VUUR
Shield Type - CR 20 V
Shield Type - CR 20 VR
Stud Diameter (mm) - 12.7
Stud Diameter (inch) - 0.5
Weight (kg) - 0.137

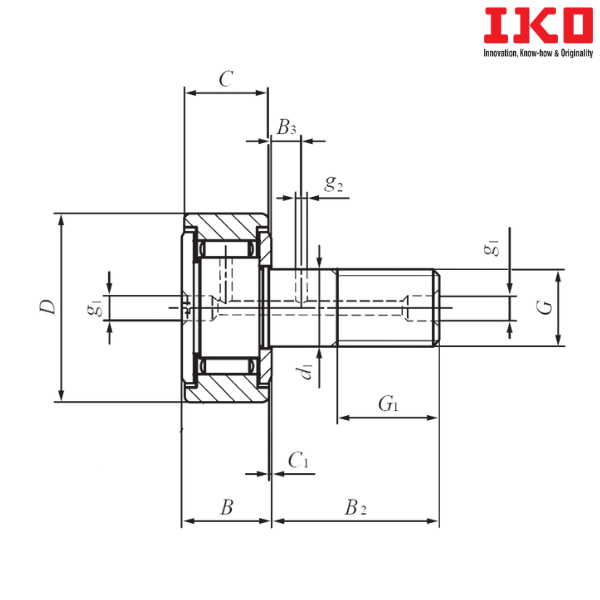

Outside Diameter of Outer Diameter (D) mm - 31.75
Outside Diameter of Outer Diameter (D) inch - 1.25
Width of Outer Ring (C) mm - 19.05
Width of Outer Ring (C) inch - 0.75
Boundary Dimension (d1) mm - 12.7
Boundary Dimension (d1) inch - 0.5
G - 1/2 - 20
Boundary Dimension (G1) mm - 15.875
Boundary Dimension (G1) inch - 0.625
Maximum Boundary Dimension (B) mm - 20.4
Maximum Boundary Dimension (B) inch - 0.8
Boundary Dimension (B2) mm - 31.75
Boundary Dimension (B2) inch - 1.25
Boundary Dimension (B3) mm - 7.938
Boundary Dimension (B3) inch - 0.3125
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 3.175
Boundary Dimension (g2) inch - 0.125
Boundary Dimension (r) mm - 1.588
Boundary Dimension (r) inch - 0.0625
Minimum Mounting Dimension (f min) mm - 21.828
Minimum Mounting Dimension (f min) inch - 0.859375
Maximum Tightening Torque (N-m) - 27.7
Basic Dynamic Load Rating (C) N - 23600
Basic Static Load Rating (C0) N - 31700

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR - Inch Series Cam Followers (With Screwdriver Slot)
V - Full Complement Type
UU - Sealed Type
