Description
Brand - IKO
Category - Inch Series Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CR 16 VBSR IKO
Also Known As - CR16VBSR
Type - Sealed type with ThrustDisk Seals (With Crowned Outer Ring)
Sealed type with ThrustDisk Seals (With Cylindrical Outer Ring) - CR 16 VBS
Stud Diameter (mm) - 11.112
Stud Diameter (inch) - 0.4375
Weight (kg) - 0.073
Outside Diameter of Outer Diameter (D) mm - 25.4
Outside Diameter of Outer Diameter (D) inch - 1
Width of Outer Ring (C) mm - 15.875
Width of Outer Ring (C) inch - 0.625
Boundary Dimension (d1) mm - 11.112
Boundary Dimension (d1) inch - 0.4375
G - 7/16 - 20
Boundary Dimension (G1) mm - 12.7
Boundary Dimension (G1) inch - 0.5
Maximum Boundary Dimension (B) mm - 17.3
Maximum Boundary Dimension (B) inch - 0.68
Boundary Dimension (B2) mm - 25.4
Boundary Dimension (B2) inch - 1
Boundary Dimension (B3) mm - 6.35
Boundary Dimension (B3) inch - 0.25
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 3.175
Boundary Dimension (g2) inch - 0.125
Boundary Dimension (H) mm - 6.35
Boundary Dimension (H) inch - 0.25
Boundary Dimension (r) mm - 1.191
Boundary Dimension (r) inch - 0.046875

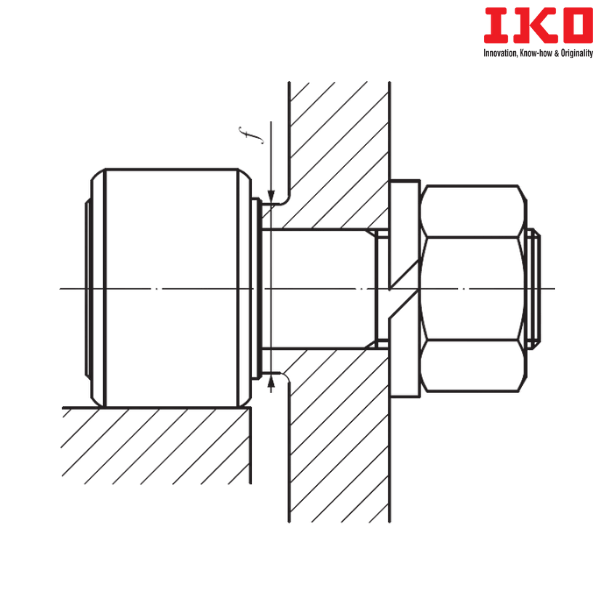

Minimum Mounting Dimension (f min) mm - 17.859
Minimum Mounting Dimension (f min) inch - 0.703125
Maximum Tightening Torque (N-m) - 17.4
Basic Dynamic Load Rating (C) N - 12000
Basic Static Load Rating (C0) N - 20300
Notes :
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
S - Sealed type with ThrustDisk Seals
R - With Crowned Outer Ring

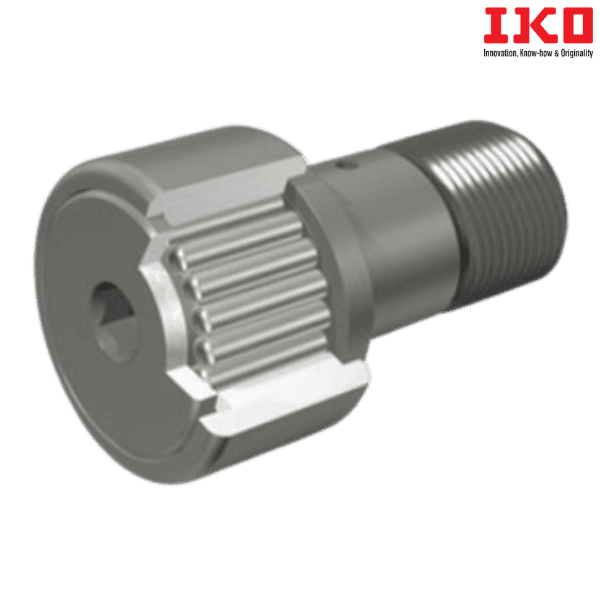

** Images are for representation purposes only
