CR 14 VUUR IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO

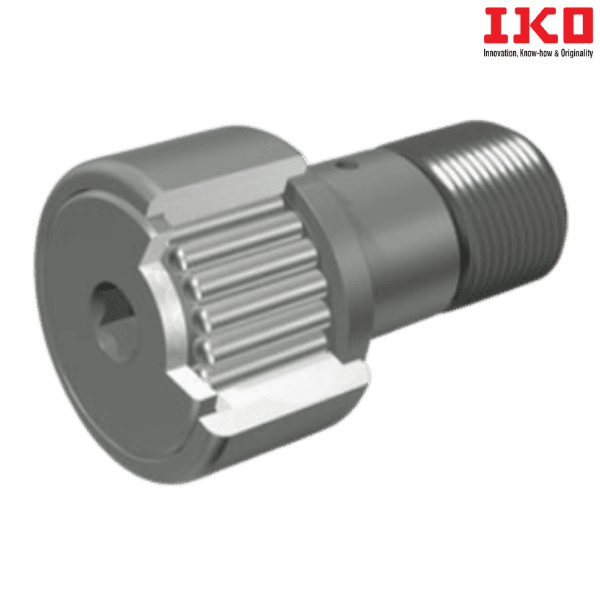

Category - Inch Series Cam Followers (Full Complement / With Screwdriver Slot)
Item Number - CR 14 VUUR IKO
Also Known As - CR14VUUR
Type - Sealed Type with Crowned Outer Ring
Shield Type - CR 14 V
Shield Type - CR 14 VR
Sealed Type - CR 14 VUU

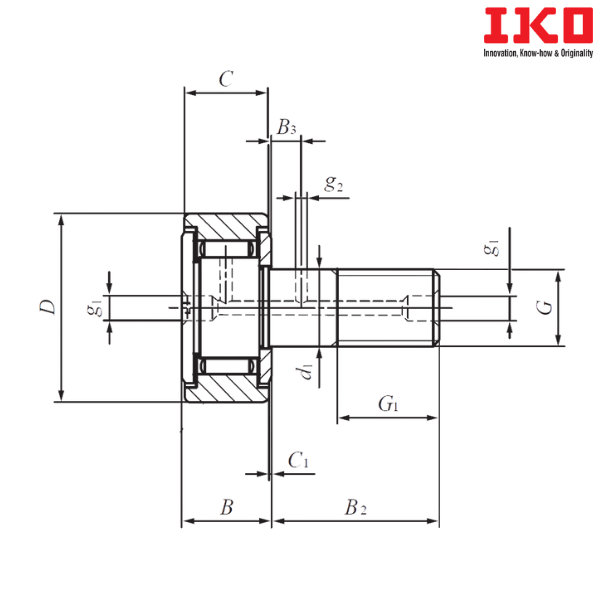

Stud Diameter (mm) - 9.525
Stud Diameter (inch) - 0.375
Weight (kg) - 0.047
Outside Diameter of Outer Diameter (D) mm - 22.225
Outside Diameter of Outer Diameter (D) inch - 0.875
Width of Outer Ring (C) mm - 12.7
Width of Outer Ring (C) inch - 0.5
Boundary Dimension (d1) mm - 9.525
Boundary Dimension (d1) inch - 0.375
G - 3/8 - 24
Boundary Dimension (G1) mm - 9.525
Boundary Dimension (G1) inch - 0.375
Maximum Boundary Dimension (B) mm - 14.2
Maximum Boundary Dimension (B) inch - 0.56
Boundary Dimension (B2) mm - 22.225
Boundary Dimension (B2) inch - 0.875
Boundary Dimension (B3) mm - 6.35
Boundary Dimension (B3) inch - 0.25
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 2.381
Boundary Dimension (g2) inch - 0.09375
Boundary Dimension (r) mm - 0.794
Boundary Dimension (r) inch - 0.03125

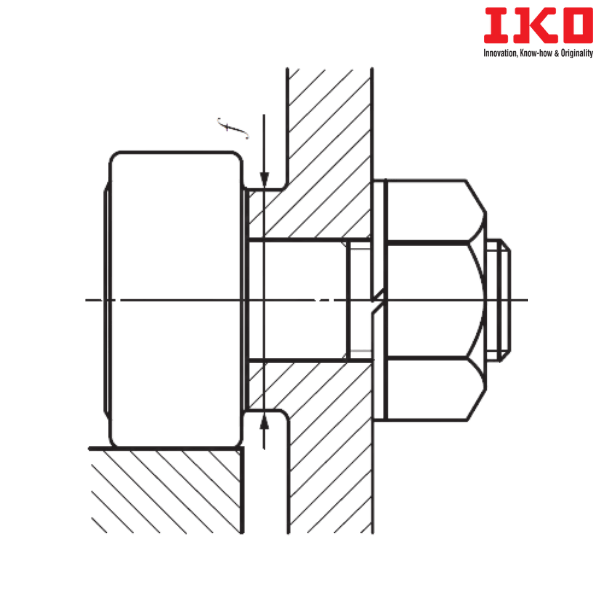

Minimum Mounting Dimension (f min) mm - 15.081
Minimum Mounting Dimension (f min) inch - 0.59375
Maximum Tightening Torque (N-m) - 10.8
Basic Dynamic Load Rating (C) N - 8710
Basic Static Load Rating (C0) N - 12300

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR - Inch Series Cam Followers (With Screwdriver Slot)
V - Full Complement Type
UU - Sealed Type

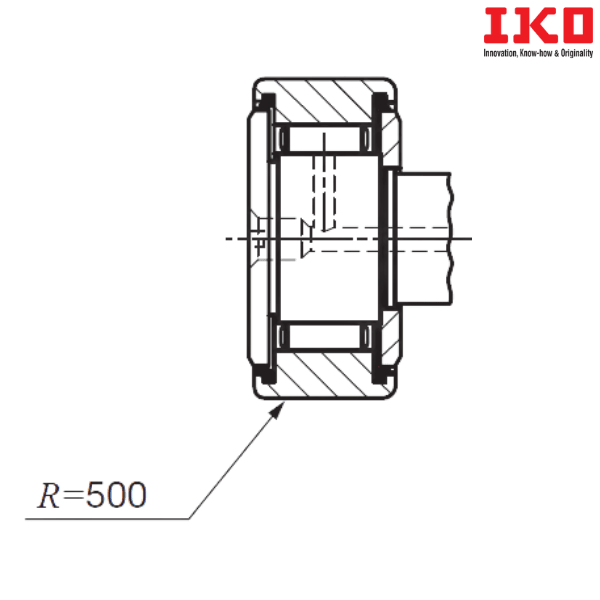

R - With Crowned Outer Ring

** Images are for representation purposes only
