Description
Brand - IKO
Item Number - CR 14 UUR IKO
Also Known As - CR14UUR

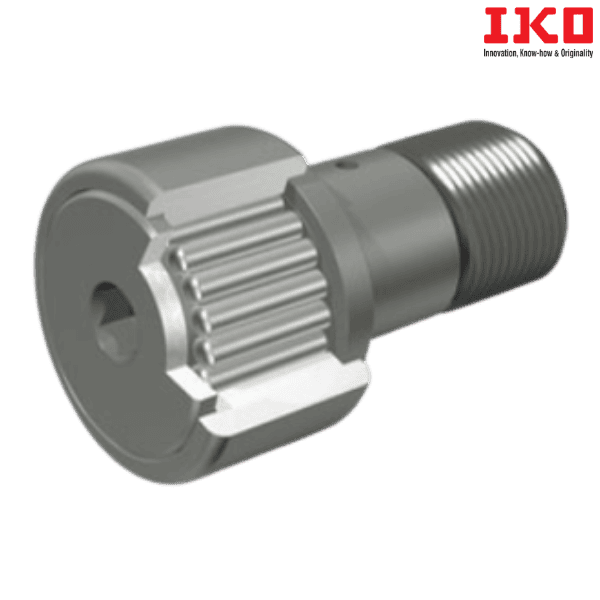

Category - Inch Series Cam Followers (With Cage / With Screwdriver Slot)
Type - Sealed Type with Crowned Outer Ring
Shield Type - CR 14
Shield Type - CR 14 R
Sealed Type - CR 14 UU
Stud Diameter (mm) - 9.525
Stud Diameter (inch) - 0.375
Weight (kg) - 0.046

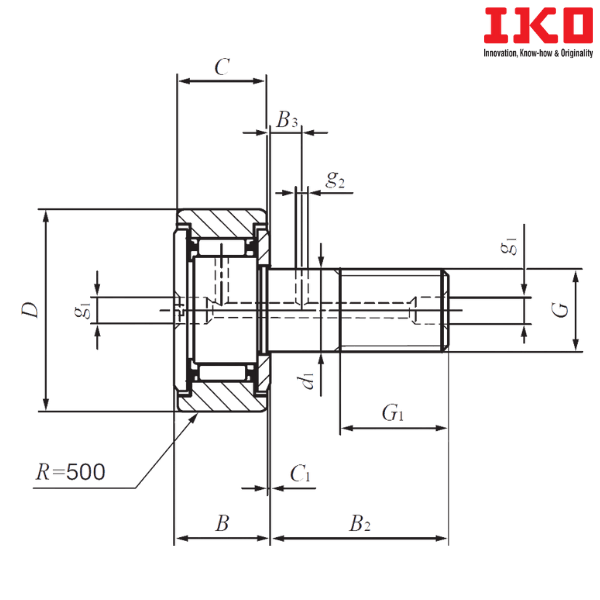

Outside Diameter of Outer Diameter (D) mm - 22.225
Outside Diameter of Outer Diameter (D) inch - 0.875
Width of Outer Ring (C) mm - 12.700
Width of Outer Ring (C) inch - 0.5
Boundary Dimension (d1) mm - 9.525
Boundary Dimension (d1) inch - 0.375
G - 3/8 - 24
Boundary Dimension (G1) mm - 9.525
Boundary Dimension (G1) inch - 0.375
Maximum Boundary Dimension (B) mm - 14.2
Maximum Boundary Dimension (B) inch - 0.56
Boundary Dimension (B2) mm - 22.225
Boundary Dimension (B2) inch - 0.875
Boundary Dimension (B3) mm - 6.350
Boundary Dimension (B3) inch - 0.25
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 2.381
Boundary Dimension (g2) inch - 0.09375
Boundary Dimension (r) mm - 0.794
Boundary Dimension (r) inch - 0.03125

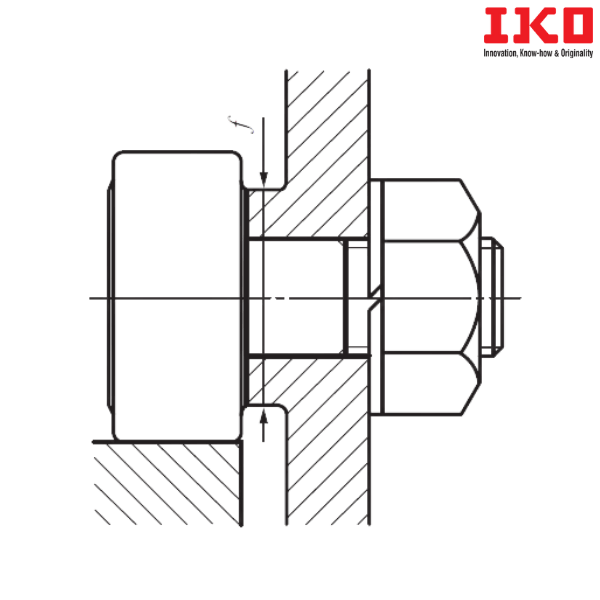

Minimum Mounting Dimension (f min) mm - 15.081
Minimum Mounting Dimension (f min) inch - 0.59375
Maximum Tightening Torque (N-m) - 10.8
Basic Dynamic Load Rating (C) N - 4790
Basic Static Load Rating (C0) N - 5810
Notes :
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR - Inch Series Cam Followers (With Screwdriver Slot)
UU - Sealed Type

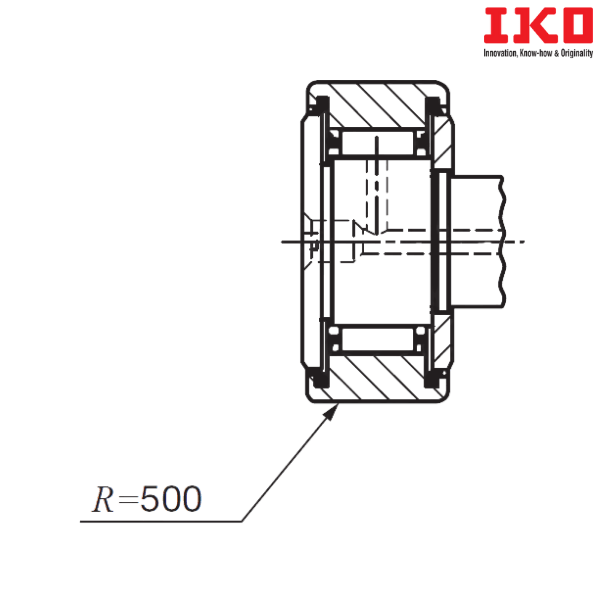

R - With Crowned Outer Ring
** Images are for representation purposes only
