Description
Brand - IKO
Category - Inch Series Cam Followers (Full Complement Type / Stud Head Hex Hole)
Item Number - CR 12 VBS IKO
Also Known As - CR12VBS
Type - Sealed type with ThrustDisk Seals (With Cylindrical Outer Ring)
Sealed type with ThrustDisk Seals (With Crowned Outer Ring) - CR 12 VBSR
Stud Diameter (mm) - 9.525
Stud Diameter (inch) - 0.375
Weight (kg) - 0.034

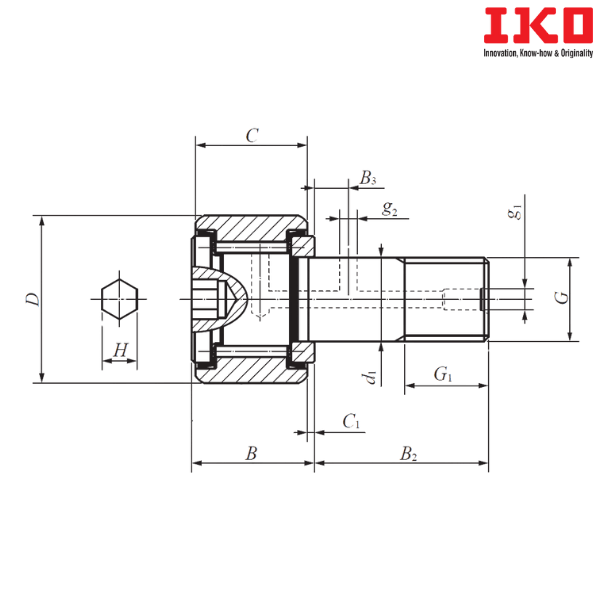

Outside Diameter of Outer Diameter (D) mm - 19.05
Outside Diameter of Outer Diameter (D) inch - 0.75
Width of Outer Ring (C) mm - 12.7
Width of Outer Ring (C) inch - 0.5
Boundary Dimension (d1) mm - 9.525
Boundary Dimension (d1) inch - 0.375
G - 3/8 - 24
Boundary Dimension (G1) mm - 9.525
Boundary Dimension (G1) inch - 0.375
Maximum Boundary Dimension (B) mm - 14.2
Maximum Boundary Dimension (B) inch - 0.56
Boundary Dimension (B2) mm - 22.225
Boundary Dimension (B2) inch - 0.875
Boundary Dimension (B3) mm - 6.35
Boundary Dimension (B3) inch - 0.25
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 4.762
Boundary Dimension (g1) inch - 0.1875
Boundary Dimension (g2) mm - 2.381
Boundary Dimension (g2) inch - 0.09375
Boundary Dimension (H) mm - 4.762
Boundary Dimension (H) inch - 0.1875

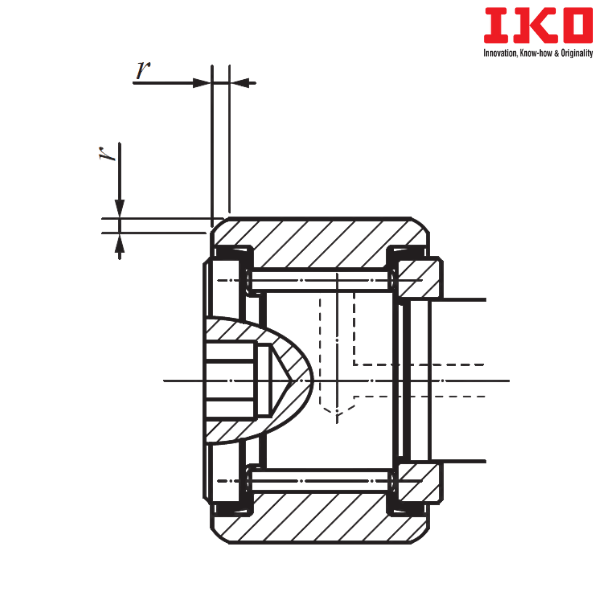

Boundary Dimension (r) mm - 0.794
Boundary Dimension (r) inch - 0.03125
Minimum Mounting Dimension (f min) mm - 13.494
Minimum Mounting Dimension (f min) inch - 0.53125
Maximum Tightening Torque (N-m) - 10.8
Basic Dynamic Load Rating (C) N - 7400
Basic Static Load Rating (C0) N - 11100
Notes :
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR....B - Inch Series Cam Followers (Stud Head Hex Hole)
V - Full Complement Type
S - Sealed type with ThrustDisk Seals

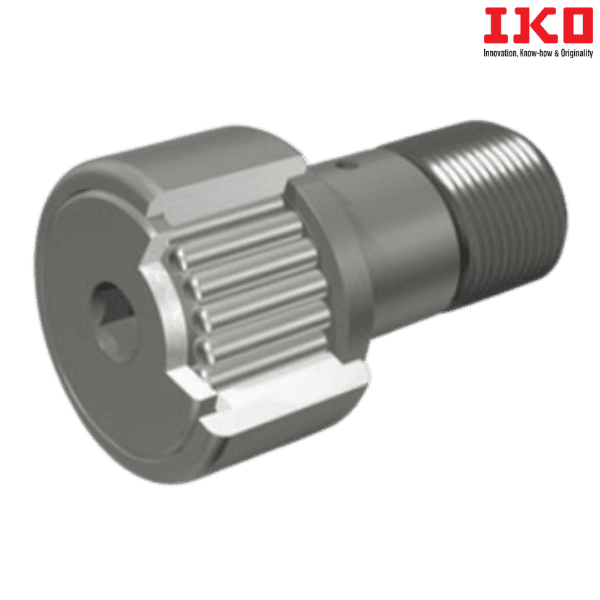

** Images are for representation purposes only
