CR 10-1 VUUR IKO

IKO

Download Data Sheet

Country Of Origin: JAPAN

Variant

Share this product

Brand - IKO

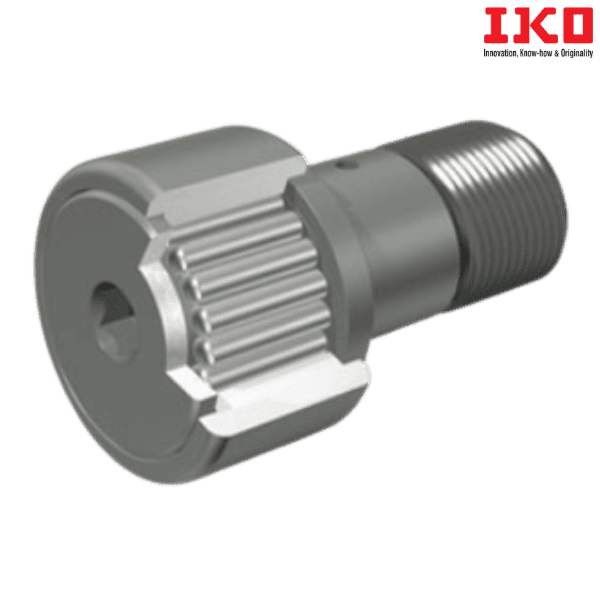

Category - Inch Series Cam Followers (Full Complement / With Screwdriver Slot)
Item Number - CR 10-1 VUUR IKO
Also Known As - CR10-1VUUR

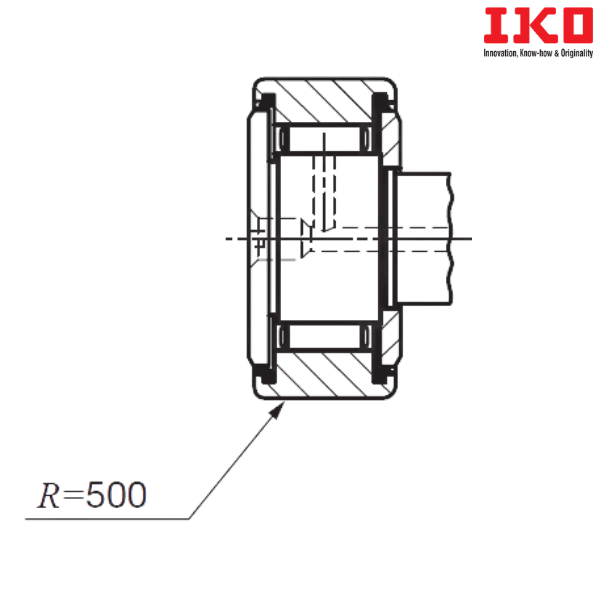

Type - Sealed Type with Crowned Outer Ring
Shield Type - CR 10-1 V
Shield Type - CR 10-1 VR
Sealed Type - CR 10-1 VUU
Stud Diameter (mm) - 6.35
Stud Diameter (inch) - 0.25
Weight (kg) - 0.021

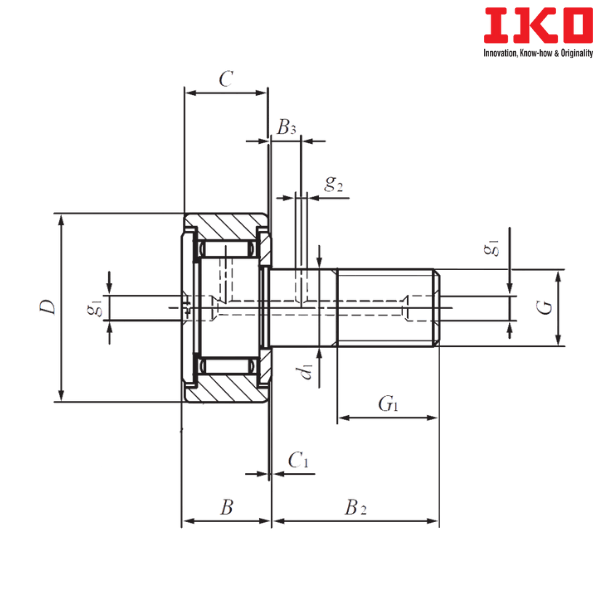

Outside Diameter of Outer Diameter (D) mm - 15.875
Outside Diameter of Outer Diameter (D) inch - 0.625
Width of Outer Ring (C) mm - 11.112
Width of Outer Ring (C) inch - 0.4375
Boundary Dimension (d1) mm - 6.35
Boundary Dimension (d1) inch - 0.25
G - 1/4 - 28
Boundary Dimension (G1) mm - 7.938
Boundary Dimension (G1) inch - 0.3125
Maximum Boundary Dimension (B) mm - 12.5
Maximum Boundary Dimension (B) inch - 0.49
Boundary Dimension (B2) mm - 19.05
Boundary Dimension (B2) inch - 0.75
Boundary Dimension (C1) mm - 0.794
Boundary Dimension (C1) inch - 0.03125
Boundary Dimension (g1) mm - 3.175
Boundary Dimension (g1) inch - 0.125
Boundary Dimension (r) mm - 0.397
Boundary Dimension (r) inch - 0.015625

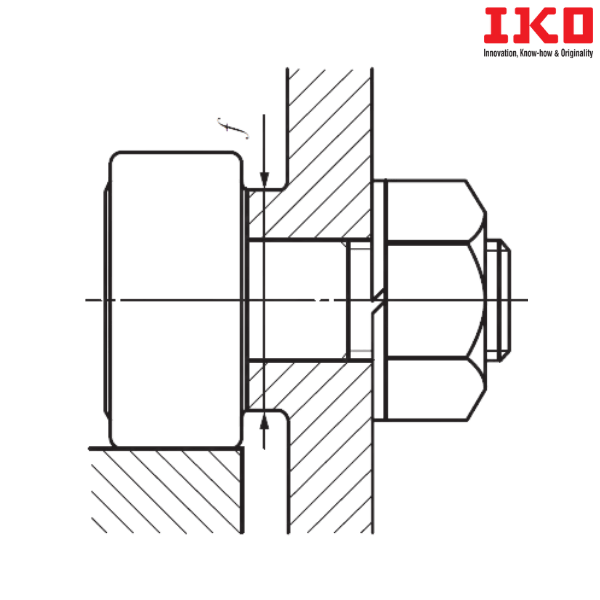

Minimum Mounting Dimension (f min) mm - 11.509
Minimum Mounting Dimension (f min) inch - 0.453125
Maximum Tightening Torque (N-m) - 3.4
Basic Dynamic Load Rating (C) N - 6340
Basic Static Load Rating (C0) N - 8530

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CR - Inch Series Cam Followers (With Screwdriver Slot)
V - Full Complement Type
UU - Sealed Type
R - With Crowned Outer Ring

** Images are for representation purposes only
