Description
Brand - NADELLA

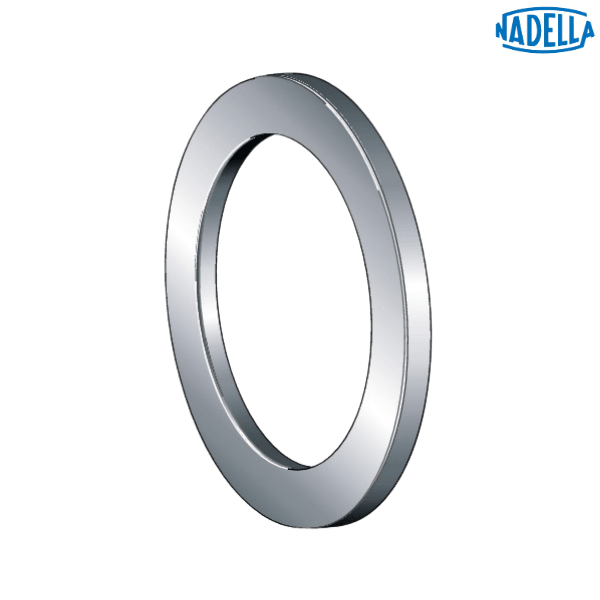

Item Number - CP 4 70 95 NADELLA
Also Known as - CP4 70 95
Category - Thrust Plates for Standard Combined Bearings, Thick Series

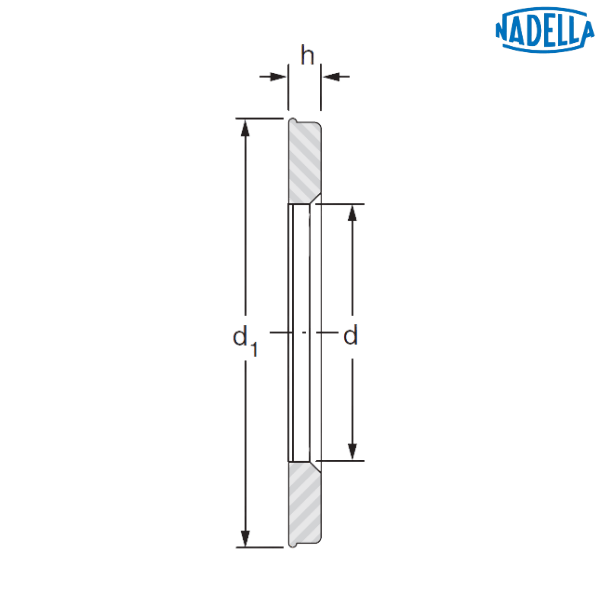

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 70 mm
Outer Diameter (d1) - 94.3 mm
Thickness Diameter (h) - 4 mm
Shaft Diameter (∅) - 70 mm
Weight - 0.093 kg
Compatible Combined Bearing - RAX 470
Description of Prefix :
CP - Plate for needle thrust bearing, roller thrust bearing (light series) and combined bearing
♦ ♦ Images are for representation purposes only
