CP 4 60 85 NADELLA

Brand - NADELLA
Item Number - CP 4 60 85 NADELLA
Also Known as - CP4 60 85
Category - Thrust Plates for Standard Combined Bearings, Thick Series

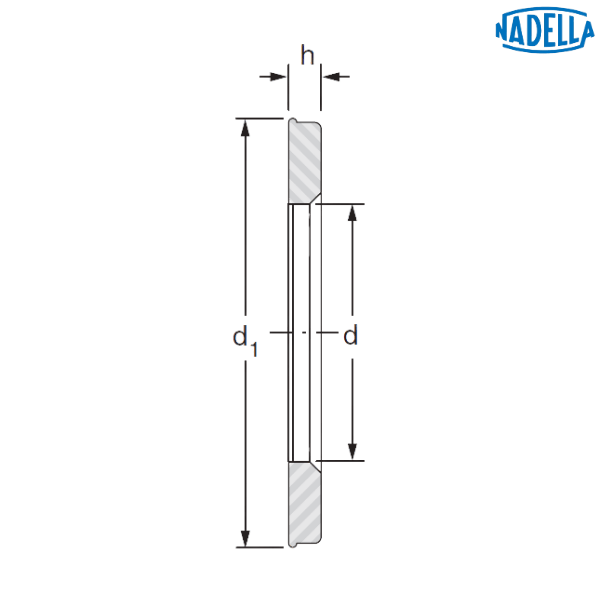

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 60 mm
Outer Diameter (d1) - 84.3 mm
Thickness Diameter (h) - 4 mm
Shaft Diameter (∅) - 60 mm
Weight - 0.083 kg
Compatible Combined Bearing - RAX 460

Description of Prefix :
CP - Plate for needle thrust bearing, roller thrust bearing (light series) and combined bearing

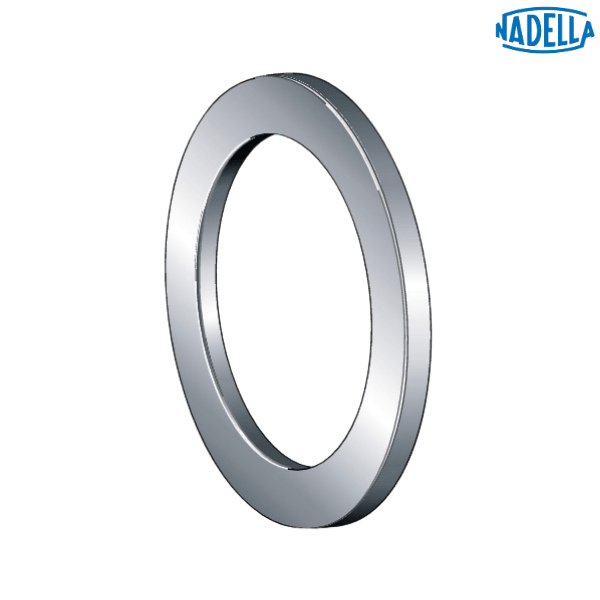

♦ ♦ Images are for representation purposes only
