Description
Brand - NADELLA
Item Number - CP 3 35 52 NADELLA
Also Known as - CP3 35 52
Category - Thrust Plates for Standard Combined Bearings, Thick Series

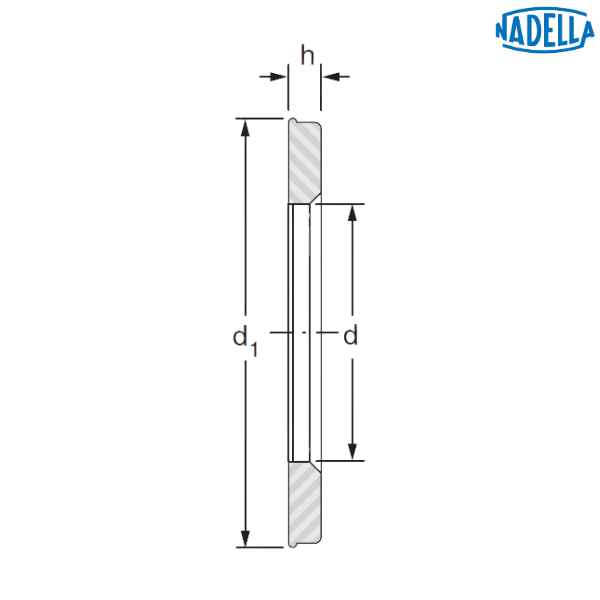

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 35 mm
Outer Diameter (d1) - 51.5 mm
Thickness Diameter (h) - 3 mm
Shaft Diameter (∅) - 35 mm
Weight - 0.026 kg
Compatible Combined Bearings - RAX 735, RAXF 735, RAX 435
Description of Prefix :
CP - Plate for needle thrust bearing, roller thrust bearing (light series) and combined bearing

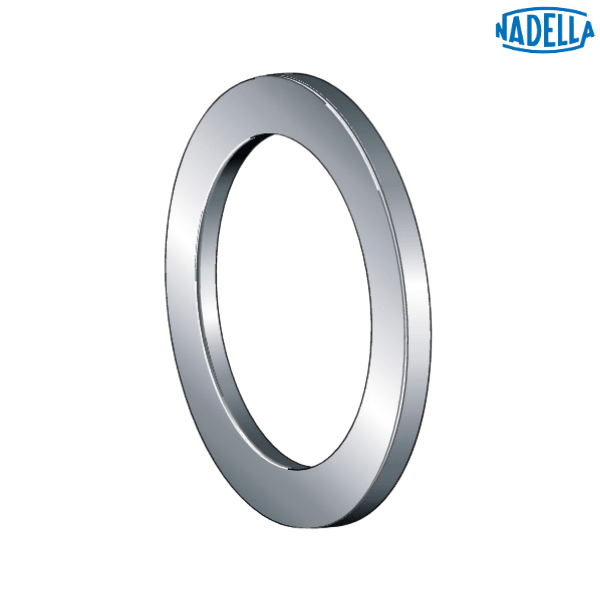

♦ ♦ Images are for representation purposes only
