CP 2 17 30 NADELLA

Brand - NADELLA
Item Number - CP 2 17 30 NADELLA
Also Known as - CP2 17 30
Category - Thrust Plates for Standard Combined Bearings, Thick Series

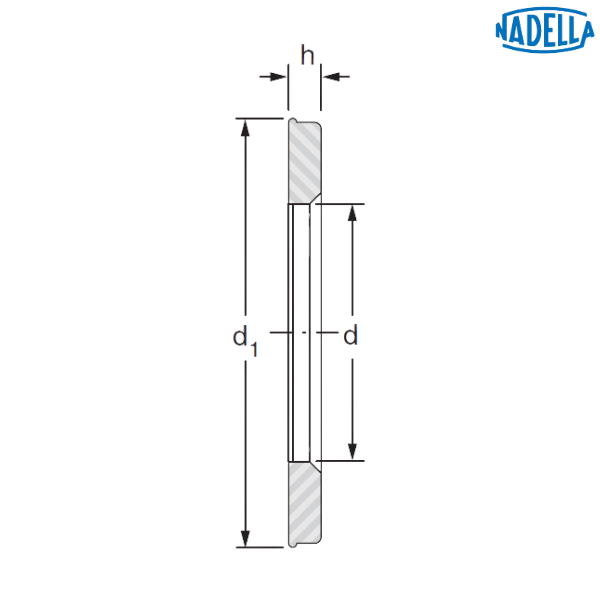

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 17 mm
Outer Diameter (d1) - 29.5 mm
Thickness Diameter (h) - 2 mm
Shaft Diameter (∅) - 17 mm
Weight - 0.007 kg
Compatible Combined Bearing - RAX 417

Description of Prefix :
CP - Plate for needle thrust bearing, roller thrust bearing (light series) and combined bearing

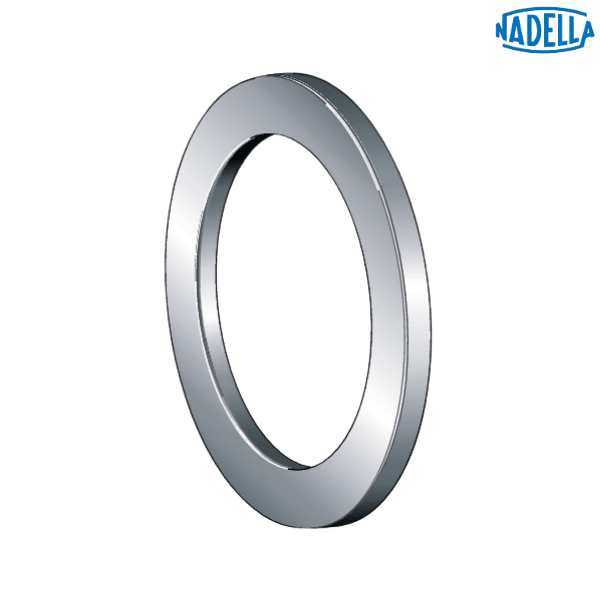

♦ ♦ Images are for representation purposes only
