CP 2 15 28 NADELLA

Brand - NADELLA
Item Number - CP 2 15 28 NADELLA
Also Known as - CP2 15 28
Category - Thrust Plates for Standard Combined Bearings, Thick Series

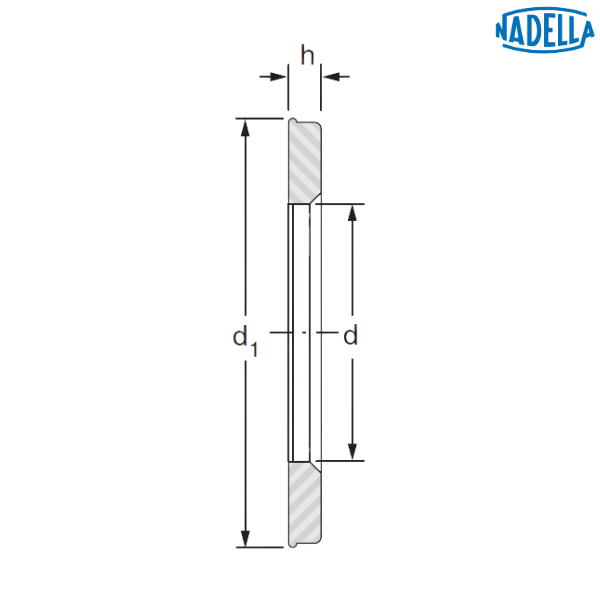

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 15 mm
Outer Diameter (d1) - 27.5 mm
Thickness Diameter (h) - 2 mm
Shaft Diameter (∅) - 15 mm
Weight - 0.006 kg
Compatible Combined Bearings - RAX 715, RAXF 715, RAX 415

Description of Prefix :
CP - Plate for needle thrust bearing, roller thrust bearing (light series) and combined bearing

♦ ♦ Images are for representation purposes only
