Description
Brand - NADELLA
Item Number - CP 10 22 NADELLA

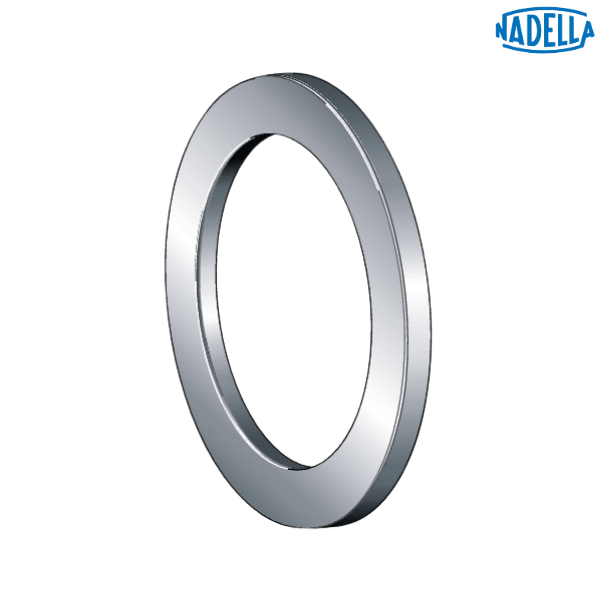

Category - Thrust Plates for Standard Combined Bearings, Thin Series

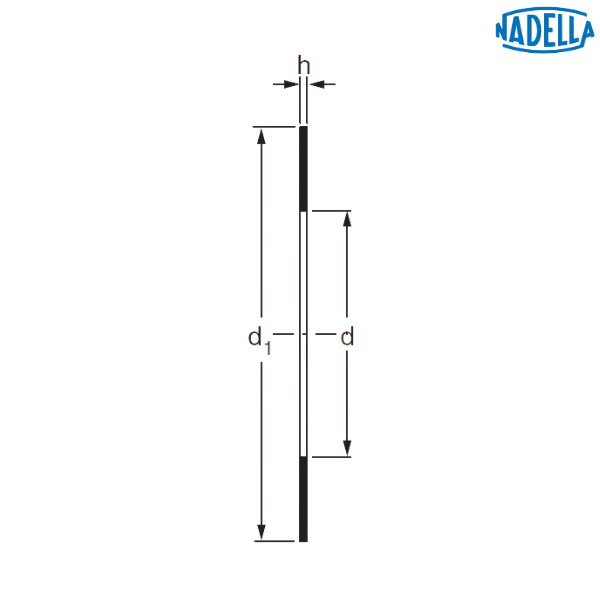

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 10 mm
Outer Diameter (d1) - 21.5 mm
Thickness Diameter (h) - 0.8 mm
Shaft Diameter (∅) - 10 mm
Weight - 0.0017 kg
Compatible Combined Bearing - RAX 410
Description of Prefix :
CP - Plate for needle thrust bearing, roller thrust bearing (light series) and combined bearing
