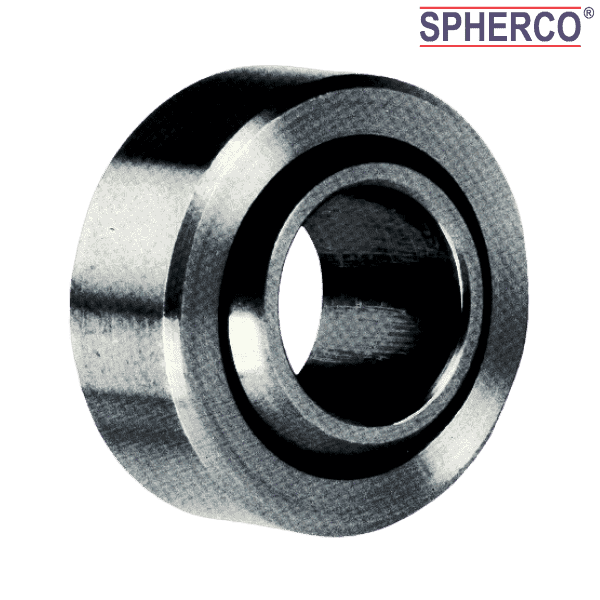

COM9T RBC SPHERCO

Brand - RBC SPHERCO
Item Number - COM9T RBC SPHERCO
Category - Spherical Bearing (Commercial Series)

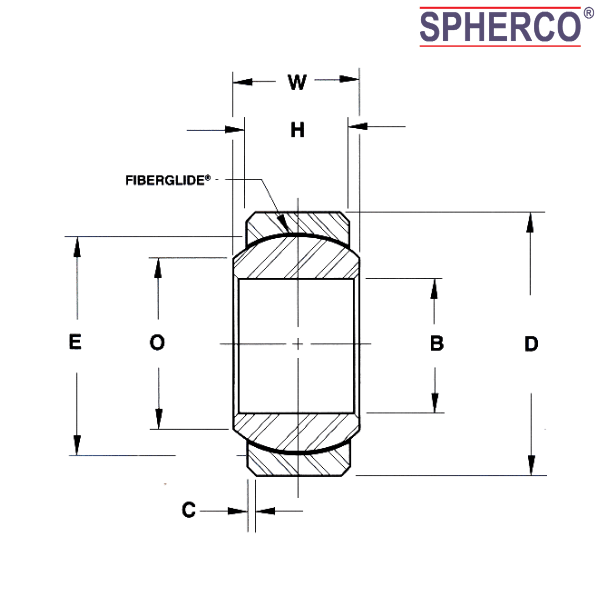

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.5625 (+.0015 to -.0005) inch
Outer DIameter (D) - 1.0937 (+.0000 to -.0007) inch
Ball Width (W) - 0.562 (+.005 to -.005) inch
Housing Width (H) - 0.437 (+.010 to -.010) inch
Chamfer DImension (C) - 0.032 (+.015 to -.000) inch
Ball Diameter (E) - 0.875 inch
Ball Flat Diameter (O) - 0.67 inch
Maximum Static Radial Load - 17500 lbf
Approximate Weight - 0.09 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.041 kg

Other salient points to be noted :
• Other Member : Carbon steel, with protective coating for corrosion resistance on all surfaces exposed after installation
• Ball : 52100 Alloy steel, heat treated, chrome plated
• Liner : Fiberglide

♦ ♦ Images are for representation purposes only
