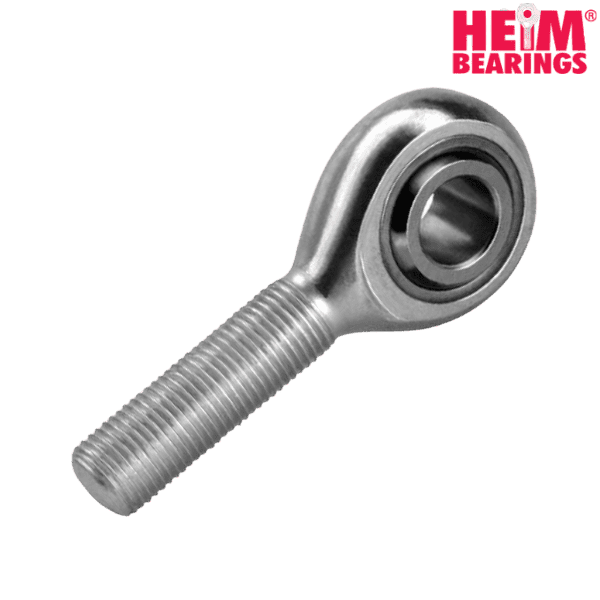

CMHD12 RBC HEIM

Brand - RBC HEIM
Item Number - CMHD12 RBC HEIM
Category - Rod Ends (Commercial Series)

Principal Dimensions & Load Ratings (Imperial) :

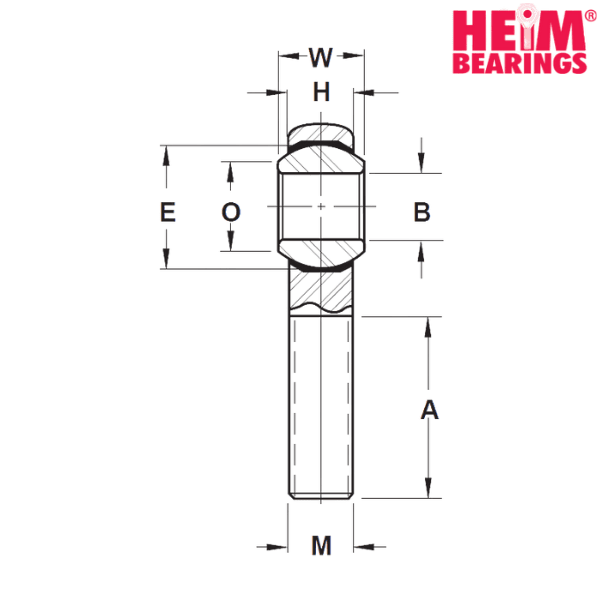

Bore Diameter (B) - 0.75 (+.0025 to - .0005) inch
Ball Width (W) - 0.875 (+.005 to - .005) inch
Housing Width (H) - 0.687 (+.010 to - .010) inch

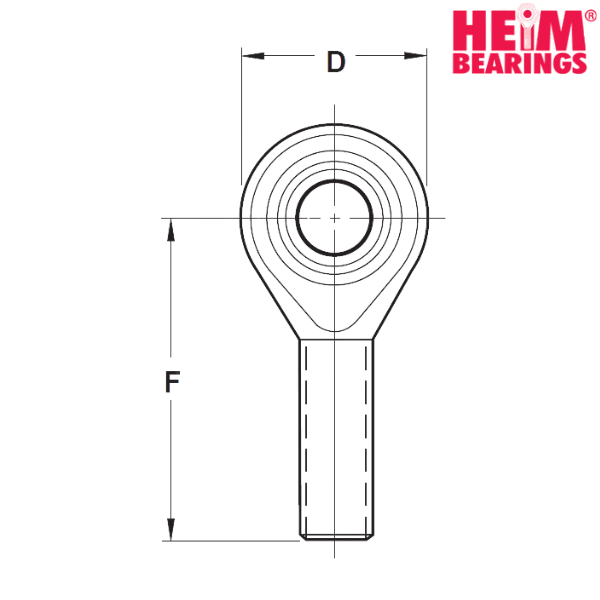

Head Diameter (D) - 1.75 inch
Length to Center of Ball (F) - 2.875 inch
Thread Length (A) - 1.75 (+.062 to - .062) inch
Thread Size (M) - 0.7500-16 (UNF-3A) inch
Ball Diameter (E) - 1.312 inch
Ball Flat Diameter (O) - 0.978 inch
Maximum Static Radial Load - 6600 lbf
Approximate Weight - 0.64 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.2902 kg

Other salient points to be noted :
• Self-Lubricating Rod Ends.
• Outer Member = Carbon steel, with protective coating for corrosion resistance.
• Ball = 52100 Alloy steel, heat treated, chrome plated.
• Race = Engineered thermoplastic.
• Add letter “L” to prefix to indicate Left Hand thread. Example: CMHDL4
• This series is also available with 300 Series Stanless Steel outer member and ball. Part number is CMSD.
